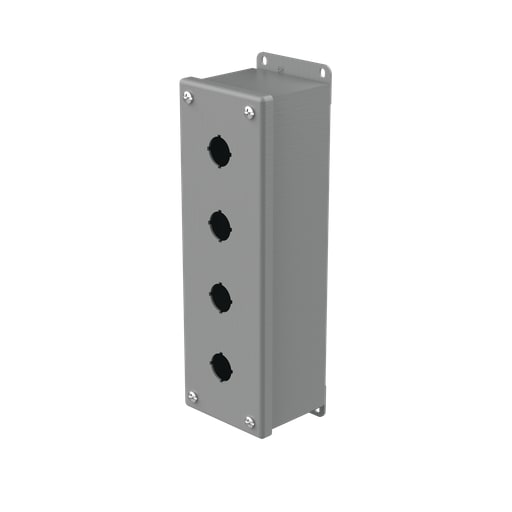

nVent Hoffman - Hoffman E4PBG 10.25" x 3.25" x 2.75" 4-Hole 22.5mm Pushbutton Enclosure, Type 12, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510590406
Applications - Controls and Drives
Catalog Number - E4PBG
Color - Gray
Depths - 70 mm
Packaging
1 ea
EAN
00783510590406
Part #
115992
Catalog #
E-4PBG
Commercial reference
E-4PBG
12-Digit UPC:
783510590406
Applications:
Controls and Drives
Catalog Number:
E4PBG
Color:
Gray
Depths:
70 mm
ERP_productname:
HOFF E-4PBG ENCLOSURE MFG ITEM 59040
Family Brand Name:
nVent Hoffman
Finish:
Powder Coated
Heights:
260 mm
Length:
10-1/2 Inch
Material:
Steel
Number of Holes:
4 Hole
Size:
4PB x 22.5mm
Sub Brand:
Hoffman
Type:
4 Holes
Widths:
83 mm
SoneparProductId:
SKU_US_58022876
These pushbutton enclosures are designed to hold 30.5-mm or 22.5-mm pushbuttons and switches. Features: Seams continuously welded and ground smooth; Captivated cover screws thread into sealed wells; Bonding provision on cover; Grounding stud on body; Oil-resistant gasket; Factory stamped 4-way pushbutton holes; Enclosures with more than one column of pushbutton holes have internal detachable hinge to hold cover open during wiring; External welded-on mounting brackets for easy installation; 30.5-mm or 22.5-mm size holes
