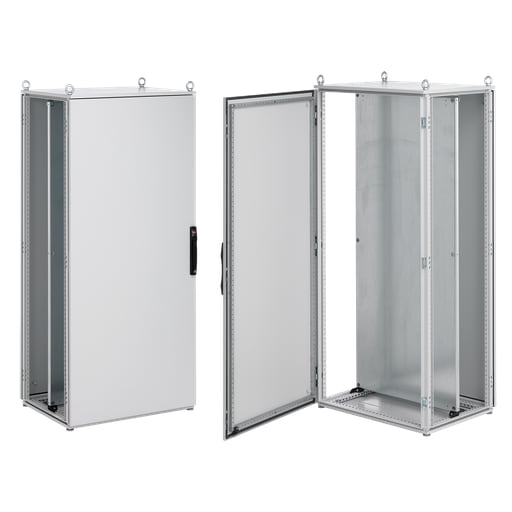

nVent Hoffman - Hoffman PP1668 ProLine Industrial Packages, Type 12, 1600x600x800

ProLine Industrial Packages are full-featured, ready-to-use enclosure solutions that make it unnecessary to order each component separately. For convenience, a single part number includes a frame, solid door(s), handle and key lock, a solid top, a solid rear cover, a full mounting subpanel, a gland plate, and four lifting eyes. Side covers are ordered separately to accommodate joining/baying applications. Features: Frames are roll-formed, robotically welded with solid steel, fully welded corners; accommodates 25 mm DIN standard; Standard door bars increase strength and rigidity and allow for an extra mounting options; Seamless foam-in-place gasket provides a protective seal against moisture and contaminants; Gasket and latching system together ensure a solid seal with low closure force; Reversible door, left hinged as a default, with 130-degree swing; Galvanized mounting plates; Capped ground studs on door, rear and top panel; Integral frame channels support the full weight of the mounting plates; Frame thickness 12 gauge/2.5 mm carbon steel powder painted in RAL 7035; Door thickness 14 gauge/2.0 mm, carbon steel powder painted . for details please check reference tables; Mounting panel 2.5 mm on single bay, 3.0 mm on double bay, galvanized steel; Rear panel and solid top 1.5 mm, carbon steel powder painted; RAL 7035
