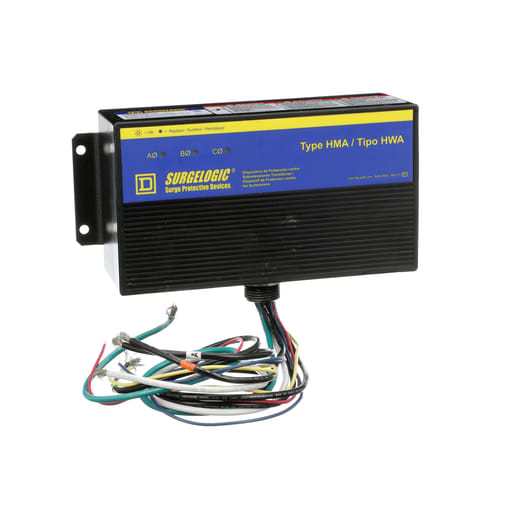

Square-D / Schneider - SQD TVS4HWA80X Surge protection dev

Essential specifications

12-Digit UPC - 785901406235
Applications - Bottom of enclosure
Catalog Number - TVS4HWA80X
Country of Origin - USA
Depths - 79 mm

Packaging

1 ea

EAN

00785901406235

Part #

178603

Catalog #

TVS4HWA80X

Commercial reference

TVS4HWA80X

12-Digit UPC:

785901406235

Applications:

Bottom of enclosure

Catalog Number:

TVS4HWA80X

Country of Origin:

USA

Depths:

79 mm

ERP_productname:

SQD TVS4HWA80X HWA TVSS, 480Y/277V, 3 PH, 4 WIRE, 80KA

Enclosure:

Enclosure Material:

Plastic

Family Brand Name:

Square D

Heights:

122 mm

Mounting Type:

Flush Fixing Kit,Surface

NEMA Size:

Number of Phases:

3 Phase

Size:

33.6 in

Sub Brand:

HWA

Tc Connection:

Wire phase and neutral AWG 10 copper;Wire ground AWG 10 copper;Wire dry contacts AWG 22 copper

Type:

Surge protection device;4-wire

Voltage:

277 Volt

Widths:

219 mm

SoneparProductId:

SKU_US_30059764

The HWA Series are surge suppressors and noise filters in a compact package. HWA surge protective devices are nipple mounted, parallel connected suppressors with different voltage configurations, including delta. TVS4HWA80X is three phase, four wire, 480Y/277VAC with an 80kA surge current. The surge suppressors use three pole spaces in a QO or Homeline load center, or NQ panelboard. The devices are NEMA 4X rated, allowing either indoor or outdoor installation. The devices comply with UL and CSA standards.
