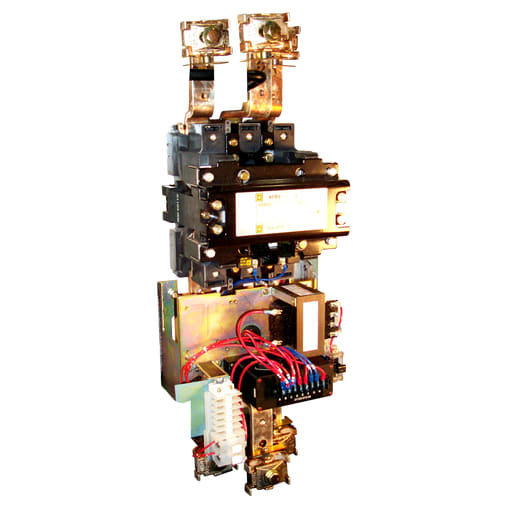

Square-D / Schneider - Square D 8502SHO2V06 440/480 VAC 540 Amp 3-Pole Open Type Full Voltage Non-Reversing Magnetic Contactor

Essential specifications

12-Digit UPC - 785901608257
Applications - Non-reversing;Circuit-breaker 800 A maximum, SCCR: 65 kA at 480 V AC;fuse J 600 A maximum, SCCR: 100 kA at 600 V AC;fuse T 600 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 600 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 600 A maximum, SCCR: 100 kA at 600 V AC
Catalog Number - 8502SHO2V06
Coil Voltage - 480 V AC 60 Hz;440 V AC 50 Hz
Country of Origin - Mexico

Packaging

1 ea

EAN

00785901608257

Part #

213149

Catalog #

8502SHO2V06

Commercial reference

8502SHO2V06

12-Digit UPC:

785901608257

Applications:

Non-reversing;Circuit-breaker 800 A maximum, SCCR: 65 kA at 480 V AC;fuse J 600 A maximum, SCCR: 100 kA at 600 V AC;fuse T 600 A maximum, SCCR: 100 kA at 600 V AC;fuse RK1 600 A maximum, SCCR: 100 kA at 600 V AC;fuse RK5 600 A maximum, SCCR: 100 kA at 600 V AC

Catalog Number:

8502SHO2V06

Coil Voltage:

480 V AC 60 Hz;440 V AC 50 Hz

Country of Origin:

Mexico

Current:

540 Amp

Depths:

228.6 mm

ERP_productname:

SQD 8502SHO2V06 CONTACTOR 600VAC 540AMP NEMA +OPTIONS

Family Brand Name:

Square D

Heights:

712.72 mm

NEMA Size:

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

3P,6

Sub Brand:

8502S

Tc Connection:

Screw clamp terminals

Type:

Contactor;No control units

Voltage:

600 Volt

Widths:

267.97 mm

SoneparProductId:

SKU_US_26277127

Type S non-reversing magnetic contactors are used to switch heating loads, capacitors, transformers, and electric motors where overload protection is provided separately. Type S contactors have ratings up to 810 amperes. This 3 pole NEMA Size 6 non-reversing contactor has a 540 ampere rating. Three phase NEMA Size 6 contactors have 150 HP at 200, 200 HP at 230 VAC and 400 HP at 460 and 575 VAC ratings. This NEMA contactor has a 100 kA maximum SCCR rating per UL508A when protected by an appropriate circuit breaker or fuse. These contactors are available with replaceable coils in a wide variety of voltages. This contactor has a 440/480 VAC 50/60 Hz coil that is wired for common control. This NEMA contactor is an open device without an enclosure. This contactor is 28.06 inches tall, 10.55 inches wide and 9.00 inches deep. A wide variety of accessories are available for Type S contactors. Type S NEMA contactors are UL listed and CSA certified.
