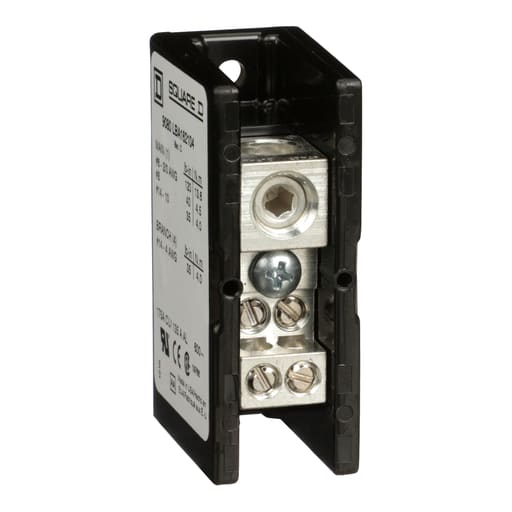

Square-D / Schneider - Square D 9080LBA162104 175 Amp 600 Volt 14 to 2/0 AWG Primary Phenolic 1-Pole Standard Power Distribution Block

12-Digit UPC:

785901097303

Amperage:

175-175 Amp COPPER-135-135 Amp ALUMINIUM

Applications:

9080LB,9080LB21

Catalog Number:

9080LBA162104

Conductor Size:

14-2/0 AWG/14-4 AWG

Country of Origin:

USA

Current:

135 Amp

Depths:

1.78 Inch

ERP_productname:

SQD 9080LBA162104 PWR DIST BLOCK

Family Brand Name:

Square D

Heights:

2.88 Inch

Material:

Phenolic: Block

Mounting Type:

Surface Mount

Number of Poles:

1 Pole

Short Circuit Current:

65 kA

Short Circuit Current Ratng:

65 kA

Size:

1.13 IN,1.78 IN,2.88 IN

Tc Connection:

LINE LUG 40 LBF.IN AWG 8 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 12...AWG 10 COPPER OR ALUMINIUM-LINE LUG 35 LBF.IN AWG 14 COPPER-LINE LUG 120 LBF.IN AWG 6...AWG 2/0 COPPER OR ALUMINIUM-LOAD LUG 120 LBF.IN AWG 14...AWG 4 COPPER,TIN PLATED ALUMINIUM LUGS

Type:

9080LB21,POWER DISTRIBUTION BLOCK

Voltage:

600 Volt

Widths:

1.13 in

Wire Size:

Line 2, AWG 14...AWG 2/0, copper or aluminium;Load 4, AWG 14...AWG 4, copper or aluminium
