Square-D / Schneider - Square D 9422ARN11 NEMA 100 Amp Disconnect Switch

Essential specifications

12-Digit UPC - 785901120445
Actuator - 6 HANDLE INCLUDED (9422A1)
Amperage - 100 Amp
Applications - ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNTED. SUITABLE FOR USE WITH FAL/FHL FRAME BREAKERS
Catalog Number - 9422-ARN11

Packaging

1 ea

EAN

00785901120445

Part #

194622

Catalog #

9422ARN11

Commercial reference

9422ARN11

12-Digit UPC:

785901120445

Actuator:

6 HANDLE INCLUDED (9422A1)

Amperage:

100 Amp

Applications:

ROD OPERATED - VARIABLE DEPTH/FLANGE MOUNTED. SUITABLE FOR USE WITH FAL/FHL FRAME BREAKERS

Catalog Number:

9422-ARN11

Circuit Breaker Type:

FAL/FHL 2,FAL/FHL 3

Country of Origin:

Mexico

ERP_productname:

SQD 9422ARN11 DISCONNECT SW 100A DISCONTINUED

Enclosure:

NEMA 1/3/3R/4/12

Family Brand Name:

Square D

Handle Type:

6 in handle included (9422A1)

Mounting Type:

Flange Rod Variable Depth

Number of Poles:

2-3 Pole

Size:

100A FRAME SIZE, 6 INCH HANDLE

Sub Brand:

SCHNEIDER ELECTRIC

Tc Connection:

FLANGE MOUNT

Trip Type:

FAL/FHL CIRCUIT BREAKERS (2 OR 3-POLE) 100A

Type:

Circuit Breaker Mechanism

SoneparProductId:

SKU_US_26412108

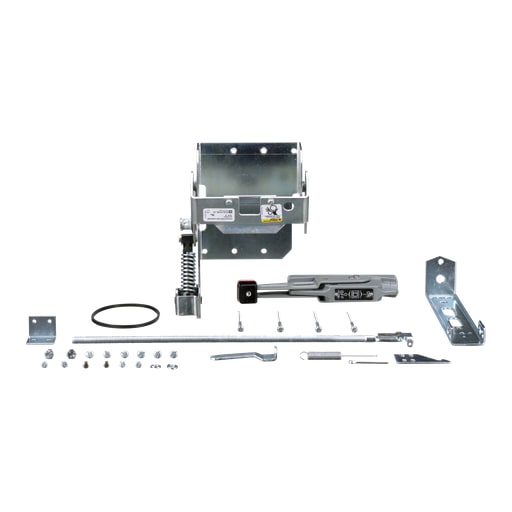

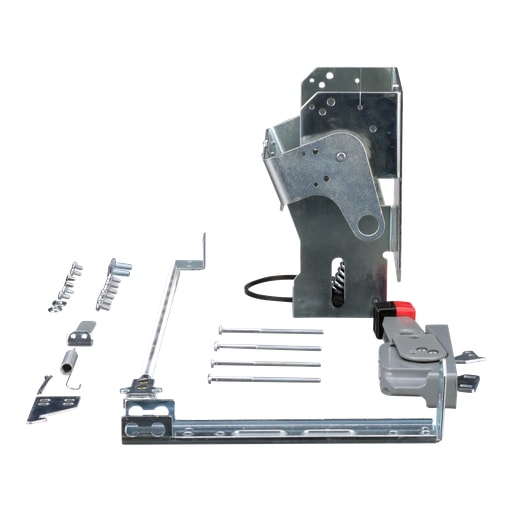

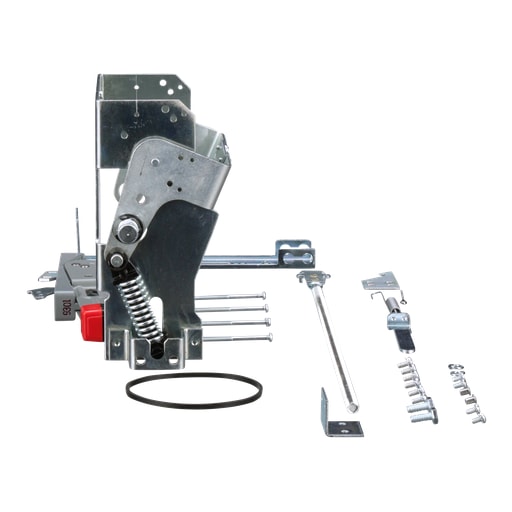

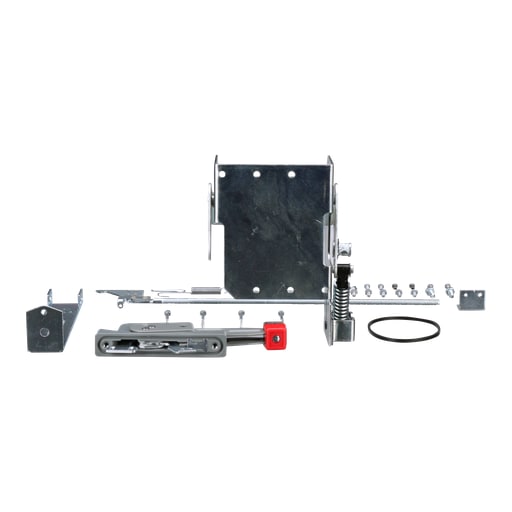

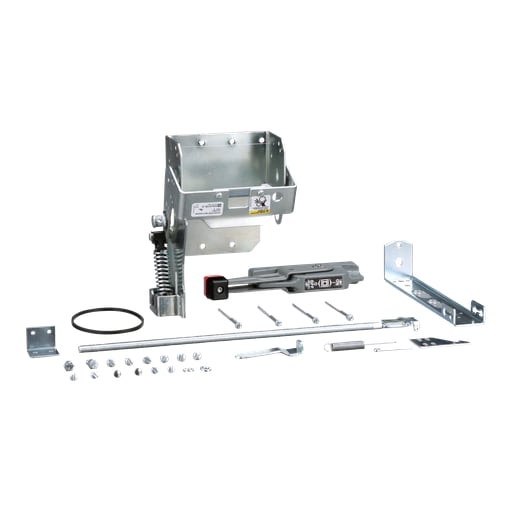

This variable depth mechanism is used with Square D circuit breakers. It is designed for installation in a custom built control enclosure where main or branch circuit protective devices are required. All circuit breaker operating mechanisms are suitable for either right or left hand flange mounting and are convertible on the job. This mechanism is for a 2 or 3 pole FAL, FCL or FHL circuit breaker with a 100A frame size. The variable depth mounting range is 5.38 to 17.75 inches. A 9422A1 handle mechanism is is included with this mechanism. Operating mechanism is UL Component Recognized and CSA certified
