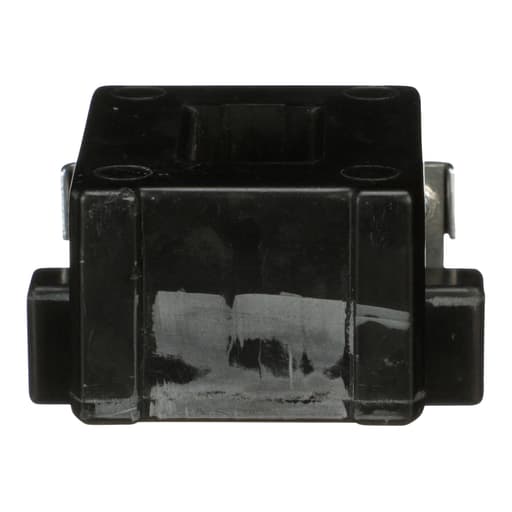

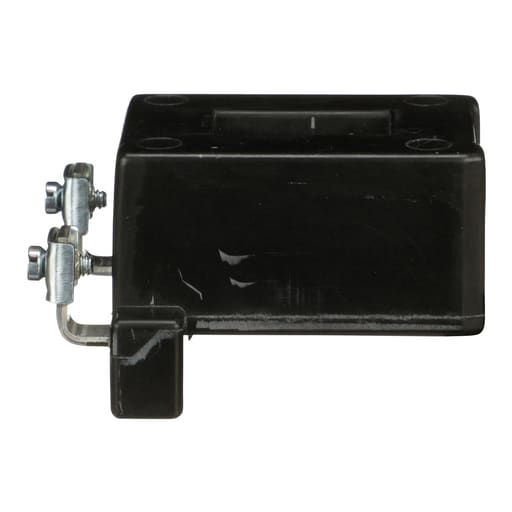

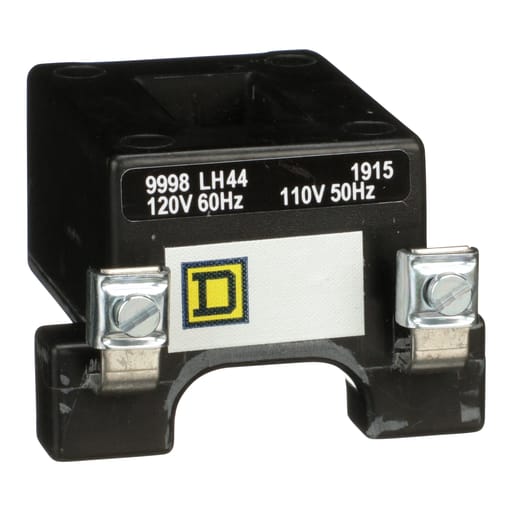

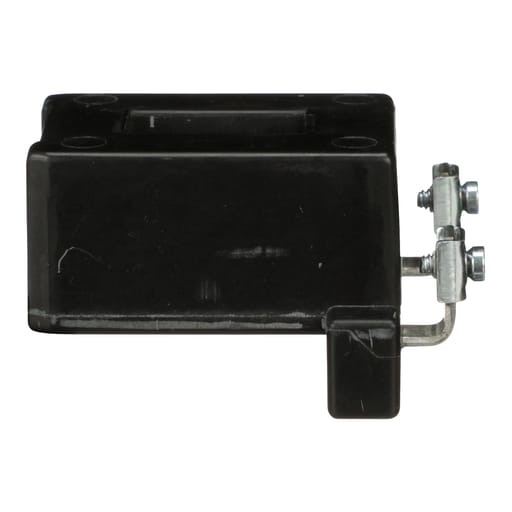

Square-D / Schneider - Square D 9998LH44 120 Volt 60 Hz Contactor AC Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901081289
Applications - CONTACTORS AND STARTERS, TYPE L/LX
Catalog Number - 9998LH44
Coil Voltage - 110/120 VAC
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901081289
Part #
196120
Catalog #
9998LH44
Commercial reference
9998LH44
12-Digit UPC:
785901081289
Applications:
CONTACTORS AND STARTERS, TYPE L/LX
Catalog Number:
9998LH44
Coil Voltage:
110/120 VAC
Country of Origin:
Mexico
Depths:
37.1 mm
ERP_productname:
SQD 9998LH44 120V COIL
Family Brand Name:
Square D
Heights:
60.5 mm
Size:
1.46 in
Sub Brand:
SCHNEIDER ELECTRIC
Tc Connection:
SCREW CLAMP
Type:
Coil
Voltage:
110 Volt
Widths:
53.6 mm
SoneparProductId:
SKU_US_25666977
8903L multipole lighting contactors are for lighting control applications. Contactors can switch up to 30 A fluorescent and 20 A tungsten lighting loads. The coil can be easily replaced in a 8903 L lighting contactor. This will also save the cost of a whole new contactor if the coil were to fail. This will also save the cost of a whole new contactor if the coil were to fail. This coil is used in an 8903L, 8 to 12 poles, and 8930LX, 6 to 12 poles, lighting contactors. The coil is rated for 110/120 VAC 50/60 Hz. The inrush power of this coil is 180 VA. It has an average sealed consumption of 35 VA. This coil has a height of 2.38 inches, a width of 2.11 inches and a depth of 1.46 inches. Coil is fully encapsulated to protect it. Coil has screw clamp connections. Compatible Products: 8903LO1200V02
