Square-D / Schneider - Square D A400L 4 Inch Bolt-On Mount Meter Socket Hub
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901130116
Applications - CONDUIT ENTRY
Catalog Number - A400L
Country of Origin - USA
ERP_productname - SQD A400L 4-IN BOLT-ON HUB
Packaging
1 ea
EAN
00785901130116
Part #
141218
Catalog #
A400L
Commercial reference
A400L
12-Digit UPC:
785901130116
Applications:
CONDUIT ENTRY
Catalog Number:
A400L
Country of Origin:
USA
ERP_productname:
SQD A400L 4-IN BOLT-ON HUB
Enclosure:
NEMA 3R
Family Brand Name:
Square D
Heights:
5 Inch
Number of Holes:
4 Hole
Size:
5 IN,5 IN
Sub Brand:
SERIES A-L
Type:
CONDUIT ENTRY-HUB
Widths:
5 in
SoneparProductId:
SKU_US_26550355

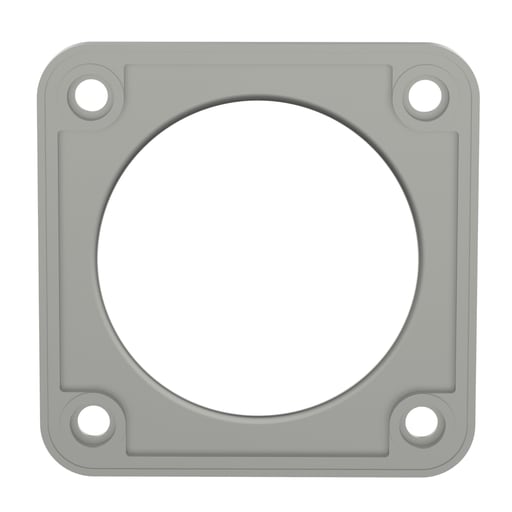

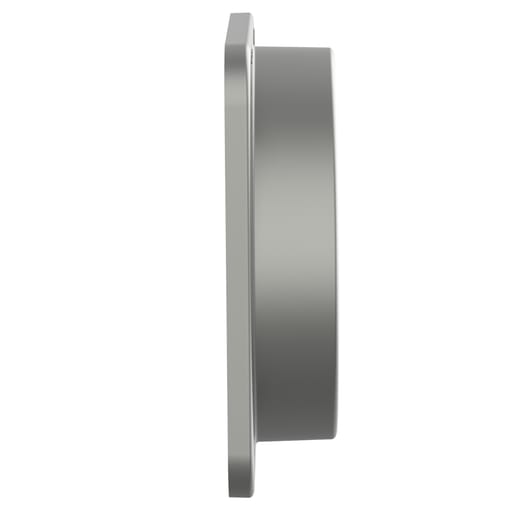

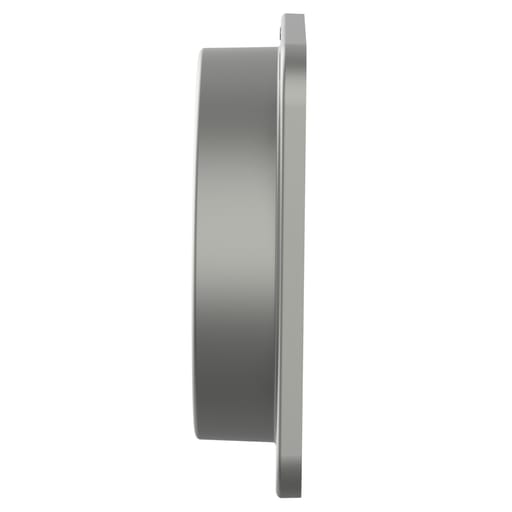

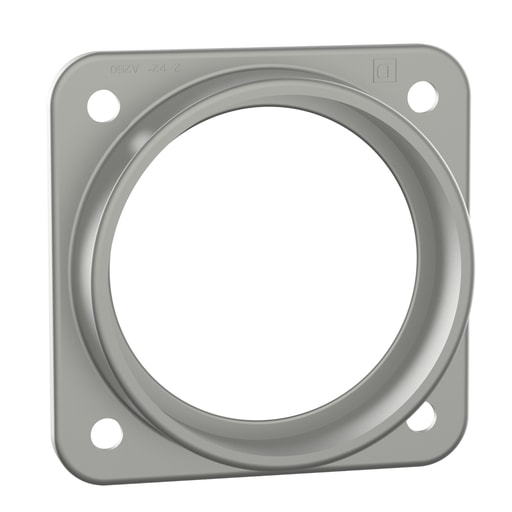

Individual meter sockets have provisions to feed a downstream main lug load center, main breaker load center, or an individually enclosed service disconnect. Units can have a combination of releases, horn, or no bypasses to handle any meter socket situation. Units supplied with hub opening in top end wall require the use of a bolt-on hub or closing plate. This bolt on hub has a 4.00 inch conduit for use on enclosures that require A/L hubs. Hub is fastened to the enclosure with four 1/4-24 x 1/2 inch slotted screws. This hub is rainproof and measures at 5.00 inches tall and 5.00 inches wide. Hub is UL Listed. Compatible Products: 1009788A; EMT3225CB; OCK400; RC816D400SL; SC816F150PS; UT5R2392TU; UTH4213T; UTH4330T; UTH43369T; UTH5213T; UTH7213T; UTH7300T; ACPL; J250R; J250F; J250S; J250DS; J250AWK
