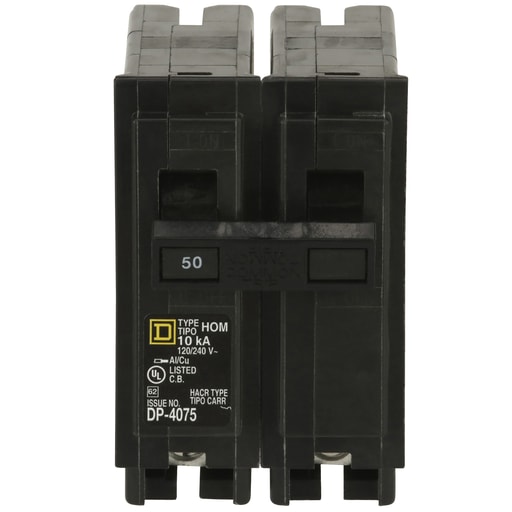

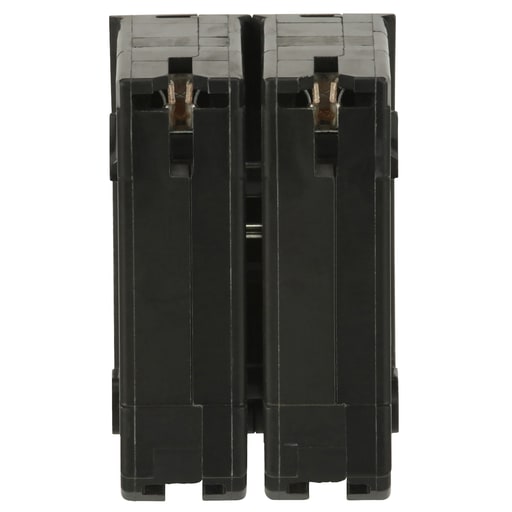

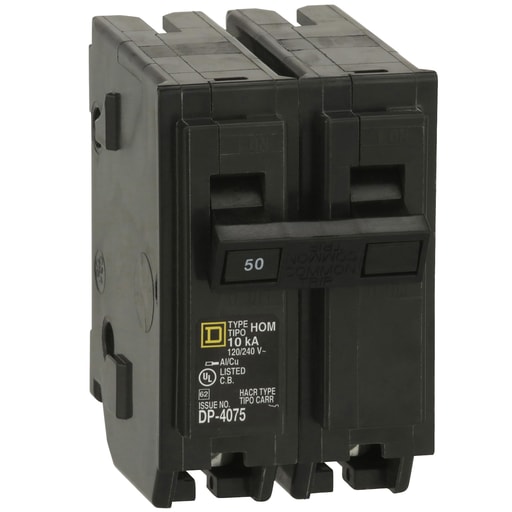

Square-D / Schneider - Square D HOM250 120/240 Volt 50 Amp Miniature Circuit Breaker

Homeline miniature circuit breakers are engineered and designed for fast installation and superior circuit protection. Homeline circuit breakers are designed to plug into Homeline load centers to provide circuit protection. This circuit breaker provides standard circuit protection and is HACR rated. This 2 pole circuit breaker with plug in mounting is rated 50A at 120/240 VAC. HOM breakers provide 10 kA breaking capacity. The electrical connections are box lugs that will accept 1 wires. The box lugs will accept a wire range of 8 AWG to 2 AWG copper or aluminum wire. This circuit breaker has a height of 3.13 inches, a width of 2.0 inch and depth of 2.98 inches. HOM Homeline miniature circuit breakers are UL Listed. Compatible Products: HOM2HBD; HOM2PALA; HOM3060M200PC; HOM612L100RB; RC12L200C; RC3040M150SL; RC816D200CH; RU3040D400CL; RU3040D400CLX; SC816D150C; SC816D200C; SC8L125S; SU3040D300FB; SU3040D400CB; SU3040D400CN; SU3040D400FB; SU3040D400FN; HOM2448L125PGC; HOM3060L225PGC; HOM4080L225PGC; HOM1224L125PGC; HOM2040L125PGC; HOM4284L225PC; HOM816M200PFTRB; HOM816L125PRB; HOM2040M100PC; HOM4080L225PC; HOM2448L125PQGC; HOM2040L125PC; HOM24L70RB; HOM1224L125PRB; HOM1224L125PC; HOM4080M200PCVP
