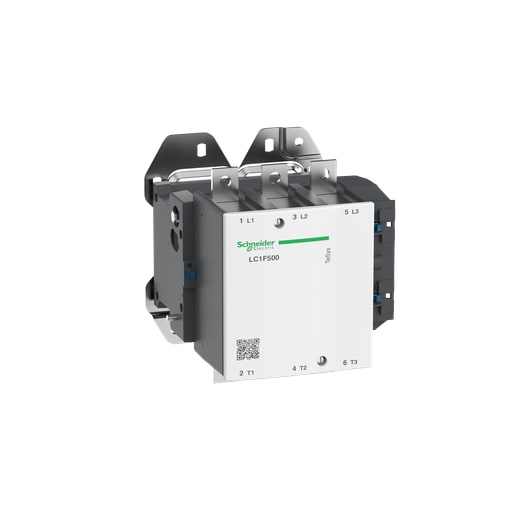

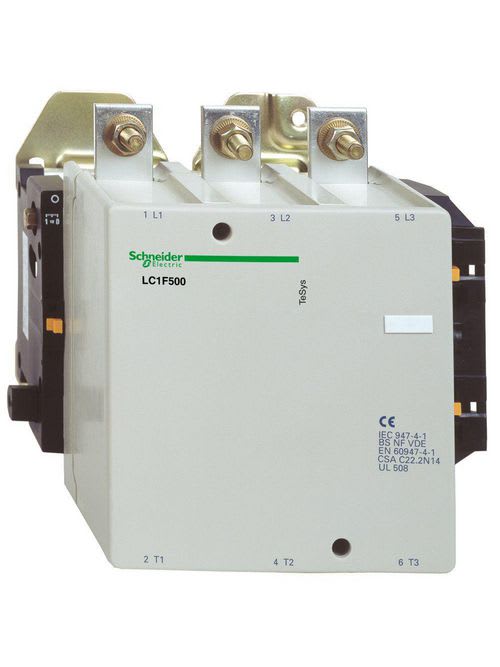

Square-D / Schneider - Square D LC1F500G7 575 VAC 500 Amp 3-Pole 1NO Panel Mount Full Voltage Non-Reversing IEC Contactor

12-Digit UPC:

389110227041

Applications:

MOTOR CONTROL-RESISTIVE LOAD

Catalog Number:

LC1F500G7

Coil Voltage:

120 V AC 40...400 HZ,120 V AC STANDARD,<= 1000 V AC 50/60 HZ- <= 460 V DC

Country of Origin:

Czech Republic

Depths:

232 mm

ERP_productname:

SQD LC1F500G7 CONTACTOR 575VAC 500AMP IEC +OPTIONS

Family Brand Name:

Schneider Electric

Heights:

238 mm

Impedance:

0.18 MOhm - Ith 700 A 50 Hz

Size:

232 MM,233 MM,238 MM

Sub Brand:

TESYS F

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-2.5 MMA.FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 1-4 MMA.SOLID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 1-4 MMA.SOLID WITHOUT CABLE END-POWER CIRCUIT BAR 2 40 X 5 MM-POWER CIRCUIT LUGS-RING TERMINALS 2 240-240 MMA.-POWER CIRCUIT BOLTED CONNECTION

Type:

Contactor

Voltage:

1000 Volt

Wattage:

88 Watt AC-1 - 45 Watt AC-3

Widths:

233 mm

SoneparProductId:

SKU_US_26495987
