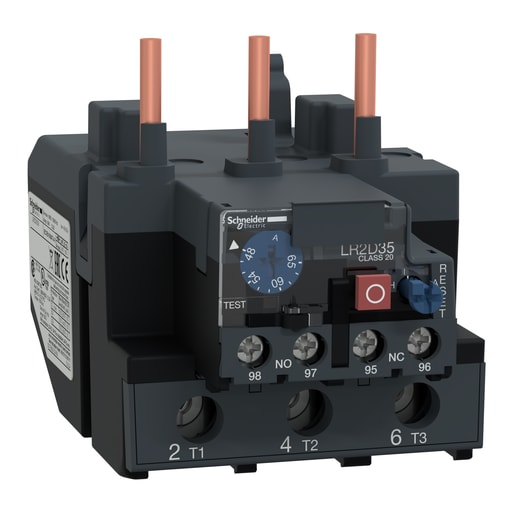

Square-D / Schneider - Square D LR2D3559 600 Volt 65 Amp 3-Pole Bi-Metallic Screw Clamp Terminal Thermal Overload Relay

LR2D3359 is a TeSys LRD thermal overload relay from Schneider Electric to be used with a TeSys D contactor. It protects motors 30kW@400V thanks to a thermal range 48-65A, a tripping class 20 and phase unbalance protection. LR2D3359 is a TeSys LRD thermal overload relay from Schneider Electric for direct mounting on TeSys D contactors. With a thermal setting range 48-65A, a tripping class 20 and phase unbalance detection, it protects motors 30kW@400V. It provides manual test & reset buttons, automatic reset, trip auxiliary contact and flag indicator. Available worldwide, it is multi-standards certified (IEC, UL, CSA, CCC, EAC, Marine) and Green Premium compliant (RoHs/Reach). Thermal overload protection relay, bimetallic type, with phase unbalance protection (differential). Direct mounting on the bottom terminals of a Tesys contactor LC1D80 and D95 to form a compact starter. Light and compact, 70mm wide. Temperature compensated for a good accuracy of the protection. Manual control with test & reset buttons, manual / automatic reset selector. Trip signaling with 1NO+1NC auxiliary contacts and trip flag indicator. Can be completed with terminal blocks for separate mounting (LAD7B, LAD96) and remote control devices (LAD703, LA7D03). Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LA7D3064; LA7D03F; LA7D03M; LA7D305; LA7D902; XB5AL84101; XB5AA86102 - Cross Sell Products: LC1D80M7; LC1D80P7; LC1D80F7; GV3L65
