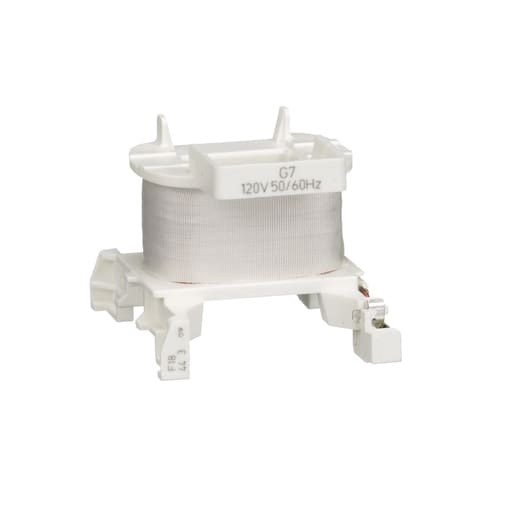

Square-D / Schneider - Square D LXD1G7 120 VAC at 50/60 Hz 70 VA AC Contactor Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110467751
Applications - LC1D09...D38;CAD;LC1DT20...DT40
Catalog Number - LXD1G7
Coil Voltage - 120@50/60Hz V
Country of Origin - France
Packaging
1 ea
EAN
03389110467758
Part #
111729
Catalog #
LXD1G7
Commercial reference
LXD1G7
12-Digit UPC:
389110467751
Applications:
LC1D09...D38;CAD;LC1DT20...DT40
Catalog Number:
LXD1G7
Coil Voltage:
120@50/60Hz V
Country of Origin:
France
ERP_productname:
SQD LXD1G7 120V CONTACTOR COIL
Family Brand Name:
Schneider Electric
Sub Brand:
TESYS
Tc Connection:
SCREW CLAMP
Type:
Contactor coil
SoneparProductId:
SKU_US_25599198
TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 120 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: LC1D09G7; LC1D18G7; LC1D25G7TQ; LC1D12G7; LC1D25G7; LC1D32G7; LC1D258G7; CAD32G7; LC2D32G7; LC2D18G7; LC1D128G7; LC2D09G7; CAD50G7; LC2D12G7; LC1D098G7; LC1DT20G7; LC2D25G7; LC1DT25G7; LC1D38G7; LC1D099G7; LC1D09G7TQ; LC1DT32G7; CAD32G7TQ; CAD323G7; LC1D188G7; LC1D1286G7; CAD326G7; LC1D32G7TQ; LC2D09G7V; LC1D256G7; LC1D326G7; LC1D096G7; LC1D186G7; LC1D123G7; LC2DT25G7; LC2D18G7V; LC2D12G7V; LC1D12G7TQ; LC2D25G7V; LC1D093G7; LC1D18G7TQ; LC2DT32G7; LC1D126G7; LC1D183G7; LC1DT326G7; LC3D320AG7; LC2D32G7V
