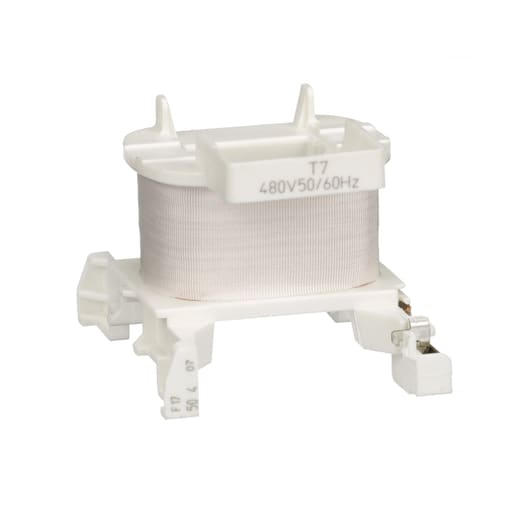

Square-D / Schneider - Square D LXD1T7 480 VAC at 50/60 Hz 70 VA AC Contactor Coil
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110467959
Applications - LC1DT20...DT40;CAD;LC1D09...D38
Catalog Number - LXD1T7
Coil Voltage - 480@50/60Hz V
Country of Origin - Indonesia
Packaging
1 ea
EAN
03389110467956
Part #
215301
Catalog #
LXD1T7
Commercial reference
LXD1T7
12-Digit UPC:
389110467959
Applications:
LC1DT20...DT40;CAD;LC1D09...D38
Catalog Number:
LXD1T7
Coil Voltage:
480@50/60Hz V
Country of Origin:
Indonesia
ERP_productname:
SQD LXD1T7 480V CONTACTOR COIL
Family Brand Name:
Schneider Electric
Sub Brand:
TESYS
Tc Connection:
SCREW CLAMP
Type:
Contactor coil
SoneparProductId:
SKU_US_26457381
TeSys D replacement coils are for replacing the operating coil in a TeSys D contactors with 9 amperes to 38 ampere ratings and Tesys D Relays. This coil has an operating voltage of 480 Vac 50/60 Hz. This coil has an inrush consumption rating of 70 VA and a sealed consumpation rating ofd 7 VA. The 60Hz operating range is 85 to 110% of nomial voltage at 60 degrees C. Prop 65: WARNING: This product can expose you to chemicals including: Antimony oxide & Antimony trioxide, which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov - Compatible Products: CAD32T7; LC1D09T7; LC1D18T7; LC1D25T7; LC1D32T7; LC1D12T7 - Cross Sell Products: LXD1R7
