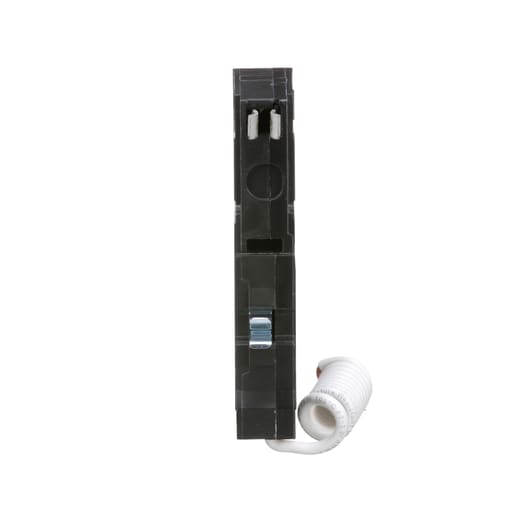

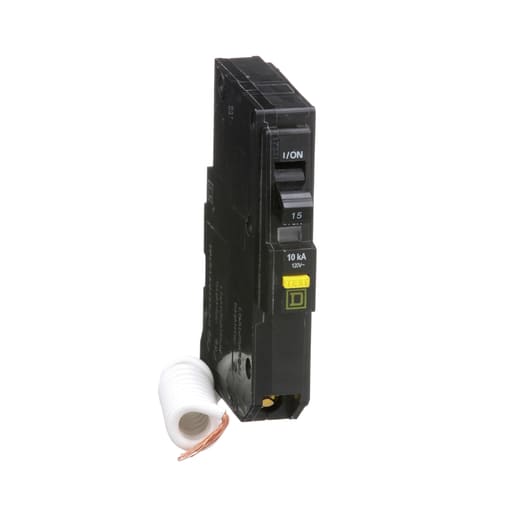

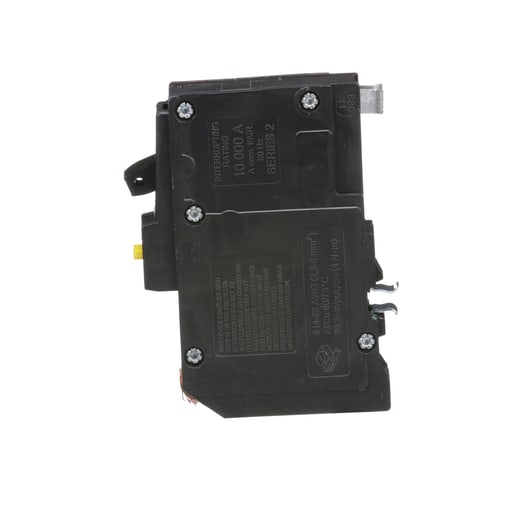

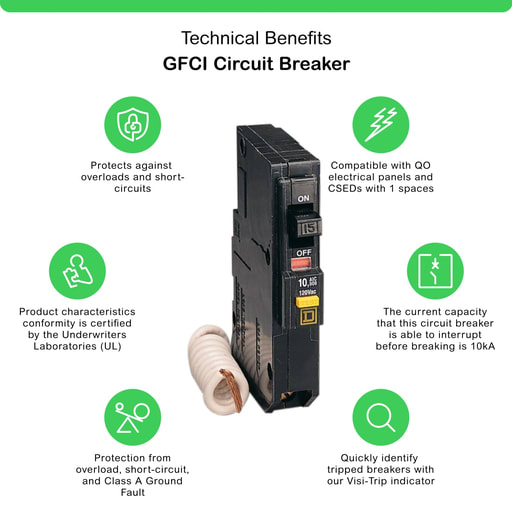

Square-D / Schneider - Square D QO115GFI Miniature Circuit Breaker w/GFI 15A 120V 1Ph 1P, Plug-On

12-Digit UPC:

785901255062

Amperage:

15 Amp

Applications:

PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED TO OFFER CLASS A GROUND-FAULT PROTECTION FOR PEOPLE

Catalog Number:

QO115GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Mexico

Current:

15 Amp

Depths:

74 mm

ERP_productname:

SQD QO115GFI SP-120/240-15A CB

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU)

Type:

MINIATURE CIRCUIT BREAKER

Voltage:

120 Volt

Widths:

19 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_25443760
