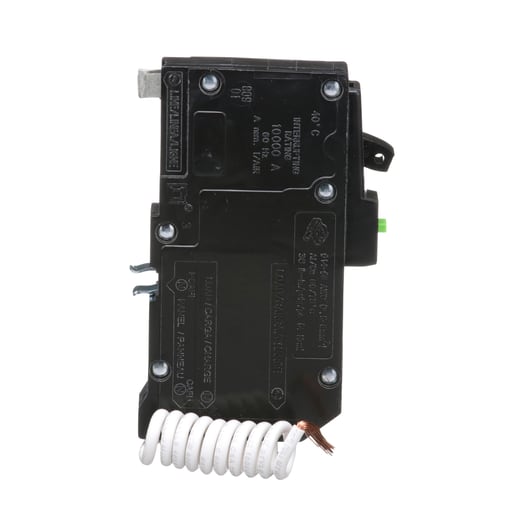

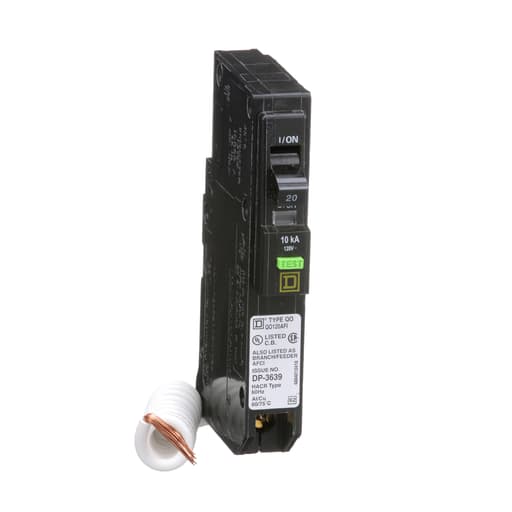

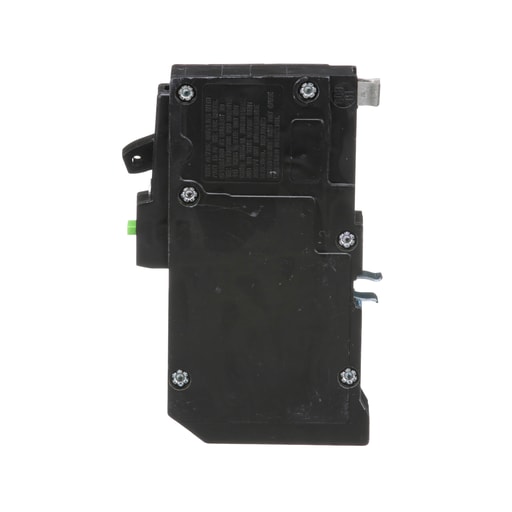

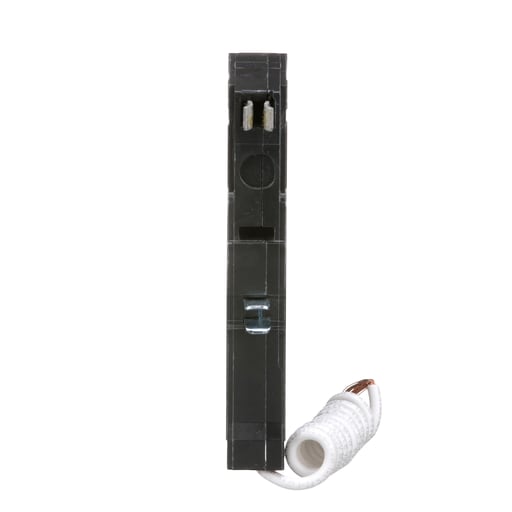

Square-D / Schneider - Square D QO120AFI Arc-Fault Miniature Circuit Breaker 20A 120V 1Ph 1P, Plug-On

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901301301

  • Amperage - 20 Amp

  • Applications - HACR rated

  • Catalog Number - QO120AFI

  • Circuit Breaker Type - ARC-fault

Packaging

  • 1 ea

EAN

00785901301301

Part #

114306

Catalog #

QO120AFI

Commercial reference

QO120AFI

12-Digit UPC:

785901301301

Amperage:

20 Amp

Applications:

HACR rated

Catalog Number:

QO120AFI

Circuit Breaker Type:

ARC-fault

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Mexico

Current:

20 Amp

Depths:

74 mm

ERP_productname:

SQD QO120AFI SP-240V-20A CB

Family Brand Name:

Square D

Heights:

121 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120/240 Volt

Widths:

19 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_25643792

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes an arc fault interrupt with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
