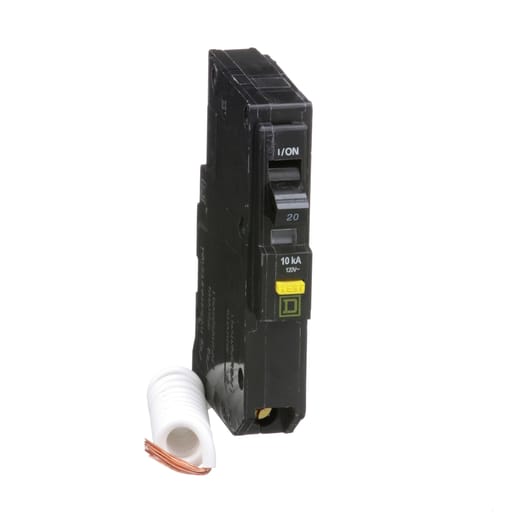

Square-D / Schneider - Square D QO120GFI Miniature Circuit Breaker w/GFI 20A 120V 1Ph 1P, Plug-On
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901255079
Amperage - 20 Amp
Applications - PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED TO OFFER CLASS A GROUND-FAULT PROTECTION FOR PEOPLE
Catalog Number - QO120GFI
Circuit Breaker Type - Ground Fault Protecting Class A 6 MA
Packaging
1 ea
EAN
00785901255079
Part #
114365
Catalog #
QO120GFI
Commercial reference
QO120GFI
12-Digit UPC:
785901255079
Amperage:
20 Amp
Applications:
PROVIDES OVERLOAD AND SHORT CIRCUIT PROTECTION DESIGNED TO OFFER CLASS A GROUND-FAULT PROTECTION FOR PEOPLE
Catalog Number:
QO120GFI
Circuit Breaker Type:
Ground Fault Protecting Class A 6 MA
Conductor Size:
12-8 AWG (AL)/14-8 AWG (CU)
Country of Origin:
Mexico
Current:
20 Amp
Depths:
74 mm
ERP_productname:
SQD QO120GFI SP-120/240V-20A CB
Family Brand Name:
Square D
Heights:
105 mm
Interrupt Rating:
10 kAIC
Length:
2.91 Inch
Mounting Type:
Plug-in
Number of Poles:
1 Pole
Short Circuit Current:
10 kA
Sub Brand:
QO
Tc Connection:
PRESSURE PLATE #12 TO #8 AWG(AL) - #14 TO #8 AWG(CU)
Type:
MINIATURE CIRCUIT BREAKER
Voltage:
120 Volt
Widths:
19 mm
Wire Size:
AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium
SoneparProductId:
SKU_US_25519607
