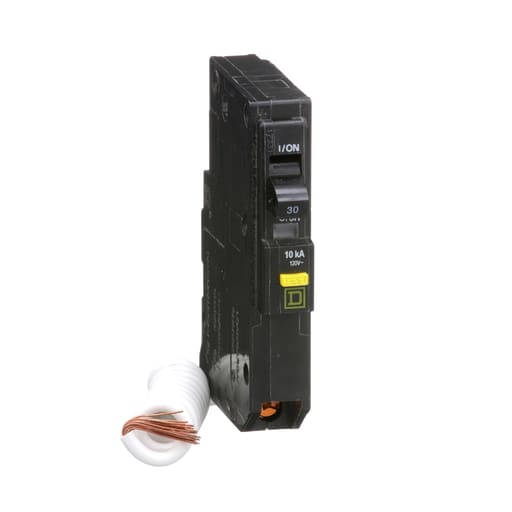

Square-D / Schneider - Square D QO130GFI Miniature Circuit Breaker w/GFI 30A 120V 1Ph 1P , Plug-On

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901255093

  • Amperage - 30 Amp

  • Applications - Not rated

  • Catalog Number - QO130GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

Packaging

  • 1 ea

EAN

00785901255093

Part #

114843

Catalog #

QO130GFI

Commercial reference

QO130GFI

12-Digit UPC:

785901255093

Amperage:

30 Amp

Applications:

Not rated

Catalog Number:

QO130GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Conductor Size:

12-8 AWG (AL)/14-8 AWG (CU)

Country of Origin:

Mexico

Current:

30 Amp

Depths:

74 mm

ERP_productname:

SQD QO130GFI SP-120/240V-30A CB

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Plug-in

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

19 mm

Wire Size:

AWG 14...AWG 8 copper;AWG 12...AWG 8 aluminium

SoneparProductId:

SKU_US_25653185

Square D™ QO™ and QOB Miniature Circuit Breakers, QO130GFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: PBPQO4A100; QC816F100CH; QC816F125C; QC816F150C; QC816F150S; QC816F200C; QC816F200CH; QC816F200S; QO1HT; QO1LO; QO24L70RB; QO2DTI; QO3100BNF; QO324MB100; QO324MB100RB; QOHPL; QON112L125PI; QON112L200PI; QON124L200PDL; QON124L200PI; QON130L200PDL; QON130L200PI; QON142L225PI; HLO1; QO1816M200FTRB; QO1PA; QO2DTIM; QO816L100RB; QO612L100RB; QO612L100TRB
