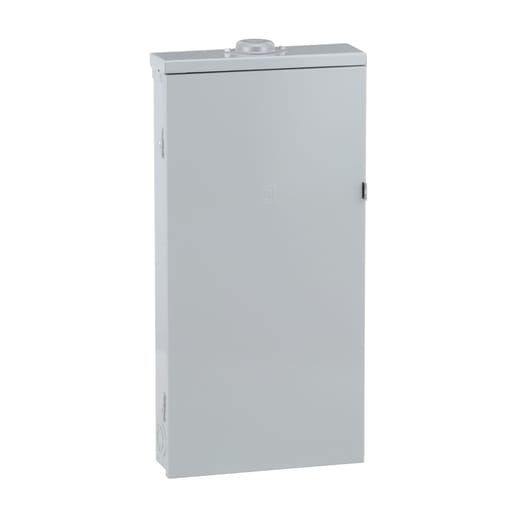

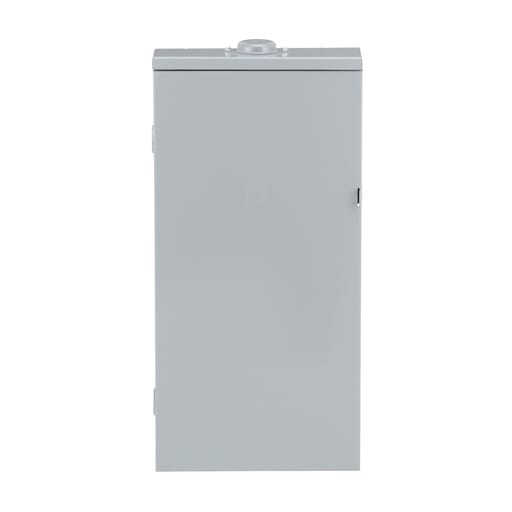

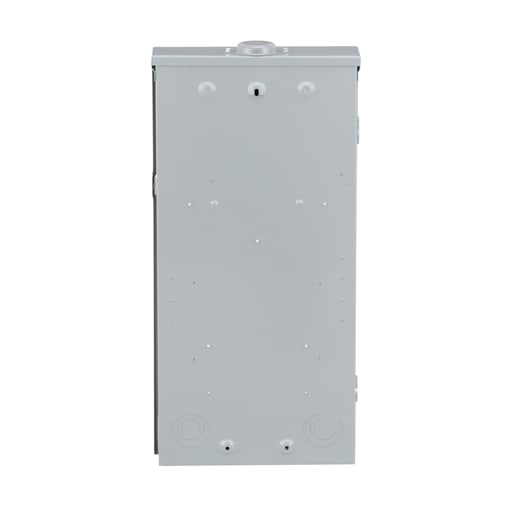

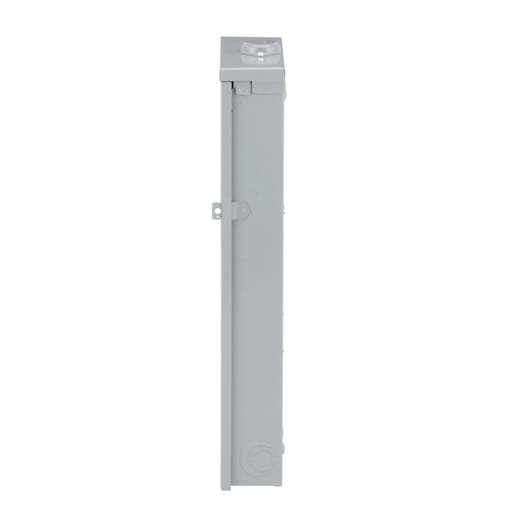

Square-D / Schneider - Square D QO1816M200FTRB Load Center QO 200A 120/240V 1Ph 8SP NEMA-3R FT
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901868187
Amperage - 200 Amp
Applications - DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Catalog Number - QO1816M200FTRB
Conductor Size - 4 AWG-250 kcmil
Packaging
1 ea
EAN
00785901868187
Part #
116467
Catalog #
QO1816M200FTRB
Commercial reference
QO1816M200FTRB
12-Digit UPC:
785901868187
Amperage:
200 Amp
Applications:
DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.
Catalog Number:
QO1816M200FTRB
Conductor Size:
4 AWG-250 kcmil
Country of Origin:
USA
Current:
200 Amp
ERP_productname:
SQD QO1816M200FTRB LD-CNTR BOX&INT
Enclosure:
3R
Enclosure Material:
Steel
Enclosure Rating:
3R
Enclosure Type:
Weatherproof enclosure
Family Brand Name:
Square D
Finish:
Baked Enamel
Heights:
758 mm
Interrupt Rating:
22 kAIC
Material:
Tin Plated Copper: Busbar
NEMA Size:
3R
Number of Circuits:
16
Number of Phases:
1,3 Phase
Short Circuit Current:
22 kA
Short Circuit Current Ratng:
22 kA
Sub Brand:
QO
Type:
Load Center
Voltage:
120/240 Volt
Widths:
375 mm
SoneparProductId:
SKU_US_69894826
