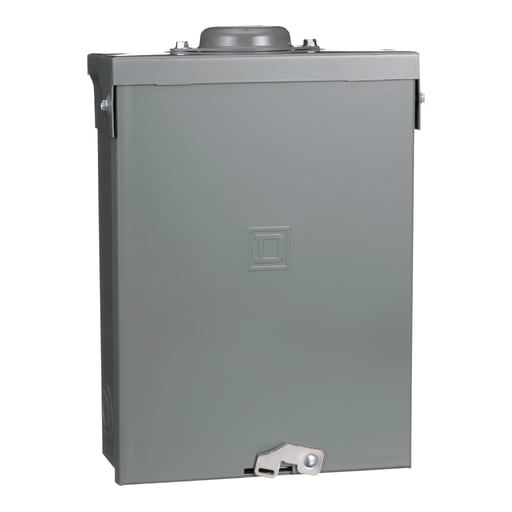

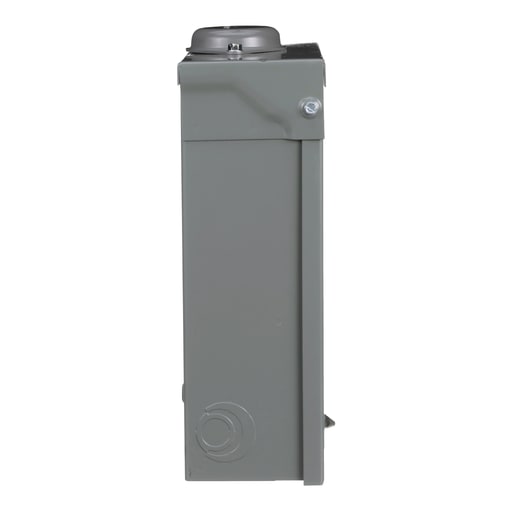

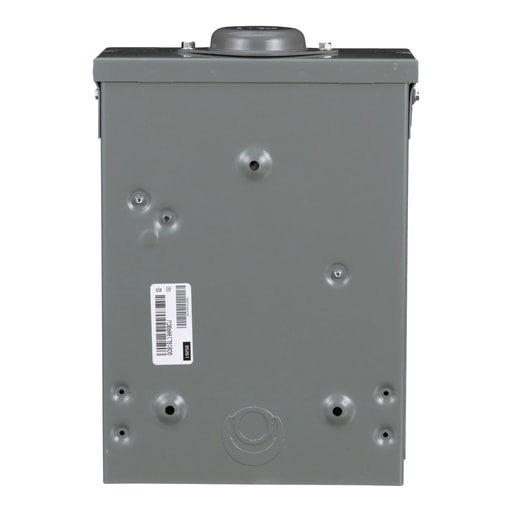

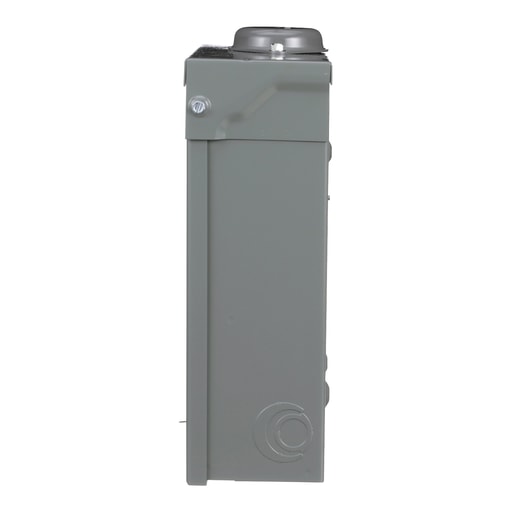

Square-D / Schneider - Square D QO816L100RBCU Load Center MLO 100A 120/240V 1Ph 8SP NEMA-3R CU BU

12-Digit UPC:

785901626404

Amperage:

100 Amp

Applications:

DESIGNED TO MEET RESIDENTIAL, COMMERCIAL AND INDUSTRIAL REQUIREMENTS TO PROTECT ELECTRICAL SYSTEMS, EQUIPMENT AND PEOPLE.

Catalog Number:

QO816L100RBCU

Conductor Size:

8-1 AWG

Country of Origin:

USA

Current:

100 Amp

Depths:

102 mm

ERP_productname:

SQD QO816L100RBCU QO LDCTR MLO 240V 100A 1PH 8SP N3R CU BU

Enclosure:

3R

Enclosure Material:

Steel

Enclosure Rating:

3R

Enclosure Type:

Weatherproof enclosure

Family Brand Name:

Square D

Finish:

Baked Enamel

Heights:

316 mm

Interrupt Rating:

10 kAIC

Material:

Tin Plated Copper: Busbar

NEMA Size:

3R

Number of Circuits:

16

Number of Phases:

1,3 Phase

Short Circuit Current:

10 kA

Short Circuit Current Ratng:

10 kA

Sub Brand:

QO

Type:

Load Center

Voltage:

120/240 Volt

Widths:

226 mm

Wire Size:

AWG 8...AWG 1 aluminium/copper

SoneparProductId:

SKU_US_26324366
