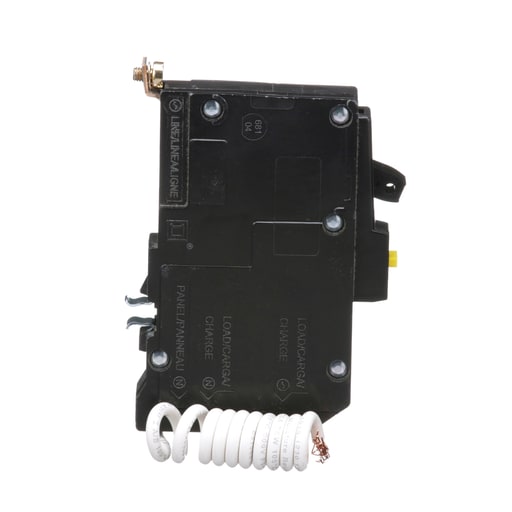

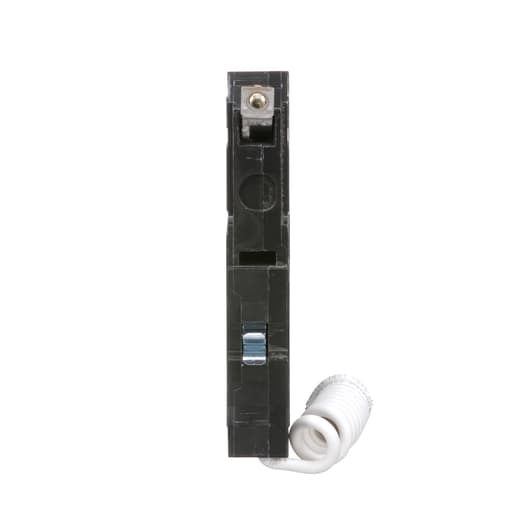

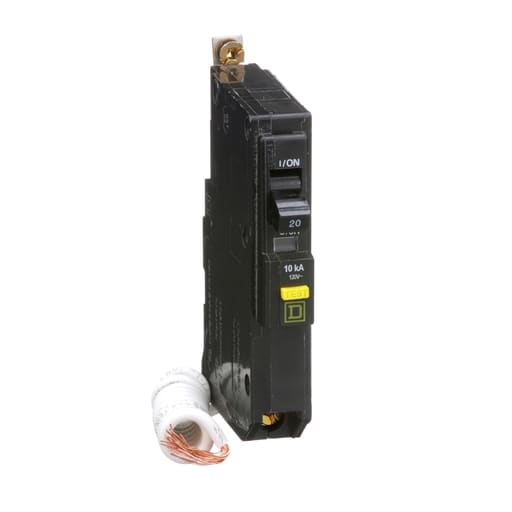

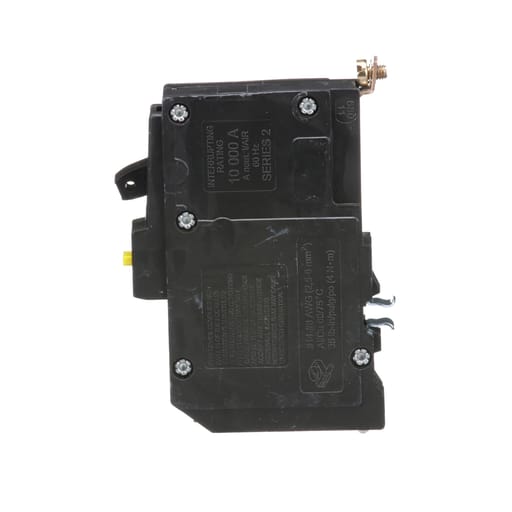

Square-D / Schneider - Square D QOB120GFI Circuit breaker w/GFI 20A 120V 1Ph , Bolt-On

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 785901368717

  • Amperage - 20 Amp

  • Applications - Not rated

  • Catalog Number - QOB120GFI

  • Circuit Breaker Type - Ground Fault Protecting Class A 6 MA

Packaging

  • 1 ea

EAN

00785901368717

Part #

109713

Catalog #

QOB120GFI

Commercial reference

QOB120GFI

12-Digit UPC:

785901368717

Amperage:

20 Amp

Applications:

Not rated

Catalog Number:

QOB120GFI

Circuit Breaker Type:

Ground Fault Protecting Class A 6 MA

Conductor Size:

14-8 AWG

Country of Origin:

USA

Current:

20 Amp

Depths:

74 mm

ERP_productname:

SQD QOB120GFI SP-120/240V-20A CB

Family Brand Name:

Square D

Heights:

105 mm

Interrupt Rating:

10 kAIC

Length:

2.91 Inch

Mounting Type:

Bolt-on

Number of Poles:

1 Pole

Short Circuit Current:

10 kA

Sub Brand:

QO

Tc Connection:

Pressure plate

Type:

Miniature circuit-breaker

Voltage:

120 Volt

Widths:

19 mm

Wire Size:

AWG 14...AWG 8 copper or aluminium NULL

SoneparProductId:

SKU_US_25661536

Square D™ QO™ and QOB Miniature Circuit Breakers, QOB120GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed. Prop 65: WARNING: This product can expose you to chemicals including: DINP, which is known to the State of California to cause cancer, and DIDP, which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: NQ442L2C; QO1HT; QO1PAF; QO1PJ15; QOHPL; NQ430L2C; QO1LO; QO1PA; QO70AN; QOFSLALB12; HLO1; NQ430L1C; QON3B; NQ42L2C; NQ442L4C; NQ442L2; NQ418L1C; NQ454L2C; NQ30L2C; NQ18L1C - Cross Sell Products: NQ430L2C; QO1HT; NQ442L2C; QO1LO
