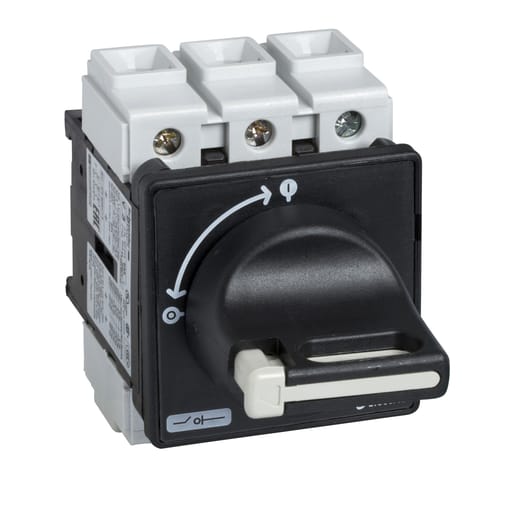

Square-D / Schneider - Square D VBF3 690 VAC 45 Amp 3-Pole Motor Disconnect Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 389110165978
Actuator - Rotary handle;Black
Amperage - 41.5 Amp AC-23 UE: 400 V
Applications - Preventive maintenance
Catalog Number - VBF3
Packaging
1 ea
EAN
03389110165975
Part #
164656
Catalog #
VBF3
Commercial reference
VBF3
12-Digit UPC:
389110165978
Actuator:
Rotary handle;Black
Amperage:
41.5 Amp AC-23 UE: 400 V
Applications:
Preventive maintenance
Catalog Number:
VBF3
Country of Origin:
Czechia
ERP_productname:
SQD VBF3 45A SW KIT W/4 HOLE MTG.BLACK/GRAY OPER
Enclosure:
IP65-IP20 CONFORMING TO IEC 60529
Family Brand Name:
Schneider Electric
Heights:
83 mm
Interrupt Rating:
500 AIC
Number of Poles:
3 Pole
Size:
60 x 60 mm;3.27 in (83 mm);2.36 in (60 mm)
Sub Brand:
VBF;TeSys VARIO
Tc Connection:
POWER CIRCUIT SCREW CLAMP TERMINALS 25-25 MMA. SOLID-POWER CIRCUIT SCREW CLAMP TERMINALS 16-16 MMA. FLEXIBLE - WITH CABLE END
Type:
Switch disconnector
Voltage:
690 Volt
Wattage:
11 kW 230...240 Volt AC-3)-22 kW 500 Volt AC-3)-22 kW 690 Volt AC-23 Amps)-30 kW 500 Volt AC-23 Amps)-18.5 kW 400...415 Volt AC-3)-18.5 kW 690 Volt AC-3)-15 kW 230...240 Volt AC-23 Amps)-22 kW 400...415 Volt AC-23 Amps)
Widths:
60 mm
SoneparProductId:
SKU_US_26664716
