Cooper Lighting - Halo H1499ICAT 4" Housing IC Air-Tite 12V Low Voltage, MR16
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 080083584079
Amperage - 4.167 at (12V)
Applications - Lighting
Catalog Number - H1499ICAT
Country of Origin - Mexico
Packaging
1 ea
EAN
00080083584079
Part #
276433
Catalog #
H1499ICAT
Commercial reference
H1499ICAT
12-Digit UPC:
080083584079
Amperage:
4.167 at (12V)
Applications:
Lighting
Catalog Number:
H1499ICAT
Country of Origin:
Mexico
ERP_productname:
HALO H1499ICAT 4IN IC LOW VOLTAGE HSG 9INX13IN
Family Brand Name:
Halo
Heights:
7.8 Inch
Length:
5-1/4 Inch
Mounting Type:
Recessed
Sub Brand:
H1499ICAT Series
Type:
4" H1499 Low Voltage Housing
Voltage:
120 Volt
Widths:
14.3 in
SoneparProductId:
SKU_US_191745163

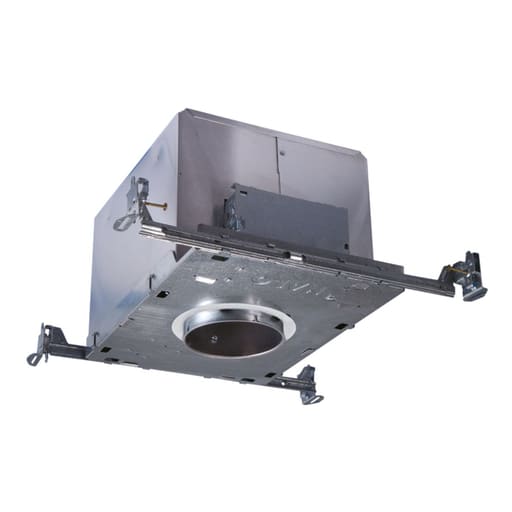

An H1499ICAT family housing with an integral low voltage transformer that supplies 12 volts to MR16 lamps. The H1499ICAT is for installations where the housing will be in direct contact with insulation. The H1499ICAT AIR-TITE™ housing also meets restricted air flow requirements. Features: 5.25 IN Length 14.3 IN Width 7.8 IN Height; Got Nail!™ bar hangers; Pass-N-Thru™ tool-less shortening of bar hangers; Slide-N-Side™ wire traps; Quick Connect wiring connectors included in junction box; AIR-TITE™; Die-formed housing and plaster frame; Housing may be removed from plaster frame for junction box access; Integral 120V transformer steps line voltage down to lamp voltage; Thermally protected
