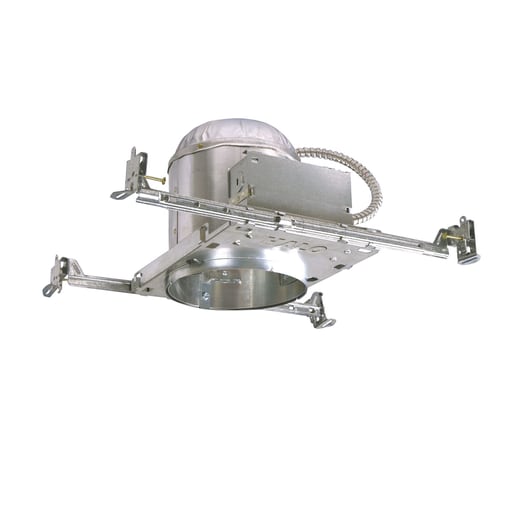

Cooper Lighting - Halo H7ICTNB 6" Housing IC No Socket Bracket 120V Line Voltage Incandescent

CopyCopy
Cooper Lighting - Halo H7ICTNB 6" Housing IC No Socket Bracket 120V Line Voltage Incandescent

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662400608523

  • Amperage - 0.75 Amp

  • Applications - Lighting

  • Catalog Number - H7ICTNB

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00662400608523

Part #

190858

Catalog #

H7ICTNB

Commercial reference

H7ICTNB

12-Digit UPC:

662400608523

Amperage:

0.75 Amp

Applications:

Lighting

Catalog Number:

H7ICTNB

Country of Origin:

Mexico

ERP_productname:

HALO H7ICTNB H7 HOUSING NO BRACKET

Family Brand Name:

Halo

Heights:

7.6 Inch

Length:

15 Inch

Mounting Type:

Recessed

Sub Brand:

H7ICTNB 6" New Construction Housing

Type:

6" H7 Housing

Voltage:

120 Volt

Widths:

13.5 in

SoneparProductId:

SKU_US_191784725

The H7ICTNB is designed for installations where the housing will be in direct contact with insulation. The H7ICTNB is designed to save installation time. It is designed without a socket plate for use with socket supporting trims only. With these trims there is no need to spend time removing the socket from the socket plate and the socket plate from the housing. H7ICTNB may be converted into AIR-TITE™ installation when used with AIR-TITE™ trims. Features: No socket bracket, 120V line voltage housing; Insulated Ceiling (IC) rated to be in direct contact with insulation; Got Nail!™ bar hangers, Slide-N-Side™ wire traps; Pass-N-Thru™ tool-less shortening of bar hangers; For use with socket supporting trims; May be converted into AIR-TITE installation when using AIR-TITE trims; Quick Connect wiring connectors included in junction box; Thermally protected protects against overheating from over-lamping; Die-formed housing and plaster frame
