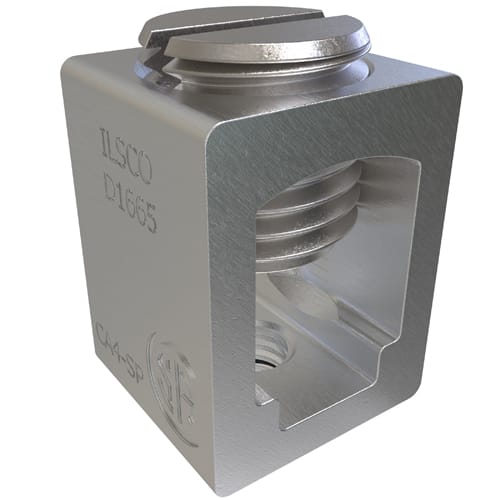

Ilsco - Ilsco CA4SP Aluminum Box-Type Mechanical Lug, Conductor Range 2-14 CU, 2-12 AL, 1 Hole, Square Boss, Tin Plated
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783669021004
Applications - Tap Connector
Catalog Number - CA4SP
Color - Silver
Conductor Material - Aluminum,Copper
Packaging
1 ea
EAN
00783669021004
Part #
362514
Catalog #
CA4SP
Commercial reference
CA4SP
12-Digit UPC:
783669021004
Applications:
Tap Connector
Catalog Number:
CA4SP
Color:
Silver
Conductor Material:
Aluminum,Copper
Conductor Size:
12-2 AWG (AL)/14-2 AWG (CU)
ERP_productname:
ILS CA4SP 12-2 ALCU RECT LUG
Family Brand Name:
Ilsco
Finish:
Tin Plated
Heights:
0.685 Inch
Length:
0.469 Inch
Material:
Aluminum
Number of Conductors:
1
Number of Holes:
1 Hole
Sub Brand:
ClearChoice
Tc Connection:
Mechanical
Type:
Box
Voltage:
35 Volt
Widths:
0.487 in
SoneparProductId:
SKU_US_29020692
ILSCO Box-Type Mechanical Lug, Mechanical connection, Dual Rated, Aluminum material, Tin plated connector,1 mounting hole(s), mounting bolt/stud size #10-32 in, UL 486A/B Recognized, C22.2 No. 65-03, Copper Primary Conductor 2 Str - 14 Str and 10 Sol - 14 Sol, Aluminum Primary Conductor 2 Str - 12 Str and 10 Sol - 12 Sol, 1 conductors, 1 ports/wireways, Drive Type Main Slotted, rated for 35 kV, primary color Silver, 1 poles,
