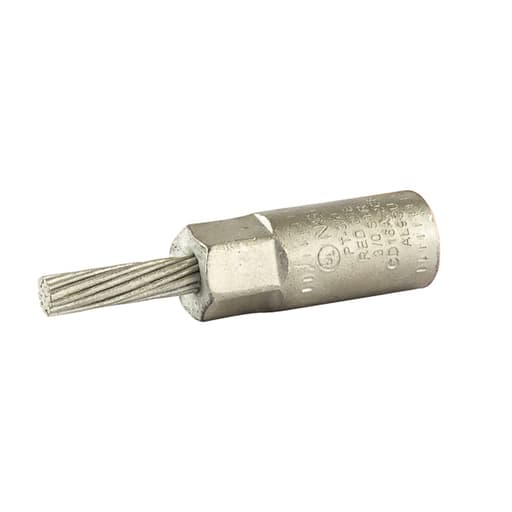

NSi - NSI PT3/0 3/0 AWG Red Tinned Aluminum 1-Conductor Stranded Bi-Metallic Pin Terminal

Essential specifications

12-Digit UPC - 662381033062
Applications - Terminate, Splice, Tap Power Connectors
Catalog Number - PT3/0
Color - White
Conductor Size - 3/0 AWG

Packaging

1 ea

EAN

00662381033062

Part #

320687

Catalog #

PT3/0

Commercial reference

PT3/0

12-Digit UPC:

662381033062

Applications:

Terminate, Splice, Tap Power Connectors

Catalog Number:

PT3/0

Color:

White

Conductor Size:

3/0 AWG

Country of Origin:

India

ERP_productname:

NSI PT3/0 ALUMINUM PIN TERMINAL CU PIN 3/0 AWG

Family Brand Name:

NSI Industries

Finish:

Tin Plated

Heights:

0.91 Inch

Length:

3.6 Inch

Material:

Aluminum

Number of Conductors:

Number of Poles:

1 Pole

Size:

L=3.59 - OD=.900 - ID=.484 - Pin Dia=.362

Sub Brand:

Pin Terminals

Tc Connection:

1/0 Pin

Type:

Bi-Metallic Pin

Voltage:

600 Volt

Widths:

0.91 in

Wire Size:

000 AWG

SoneparProductId:

SKU_US_57990687

Stranded Bi-Metallic Pin Terminal 3/0 AWG Stranded Bi-Metallic Pin Terminals is designed to facilitate termination of aluminum conductors. Tin-plated stranded copper pin. Connector bores are coated with oxide inhibitor. Supplied with EPDM insulating cover. UL 486B listed. Rated 600 volts. Features: Designed to facilitate termination of aluminum conductors; Pin - Stranded copper, tin plated; Supplied with EPDM insulating cover; Connector bores are coated with oxide inhibitor; Wire connector rated for 35kV max - Certifications and Standards: UL Listed; UL 486A-486B - Related Products:
