nVent Hoffman - Hoffman A12R126HM Horizontal-Mount Type 3R, 12" x 12" x 6", Gray, Steel
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510153564
Applications - Power Distribution
Catalog Number - A12R126HM
Color - Gray
Depths - 6 Inch
Packaging
1 ea
EAN
00783510153564
Part #
101439
Catalog #
A12R126HM
Commercial reference
A12R126HM
12-Digit UPC:
783510153564
Applications:
Power Distribution
Catalog Number:
A12R126HM
Color:
Gray
Depths:
6 Inch
ERP_productname:
HOFF A12R126HM 12X12X6 HORIZONTAL MOUNT 3R MFG ITEM 15356
Enclosure:
3R
Family Brand Name:
nVent Hoffman
Finish:
Galvanized
Heights:
12 Inch
Length:
16 Inch
Material:
Steel
Size:
12.00x12.00x6.00 in
Sub Brand:
Hoffman
Type:
Wall-Mounted / Pad-Mounted Enclosures
Widths:
12 in
SoneparProductId:
SKU_US_58081764

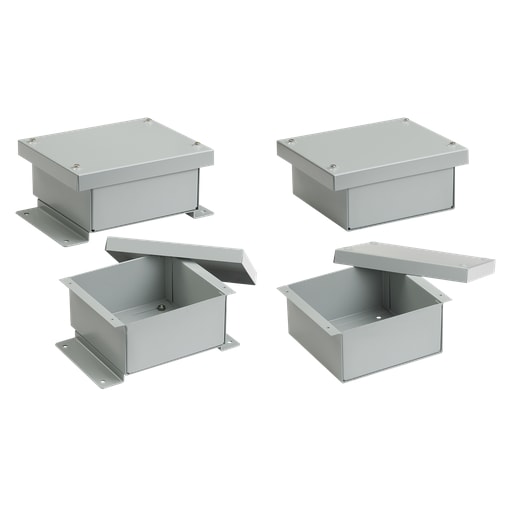

Horizontal-Mount, Type 3R eliminates the need of a vertical mounting structure in applications such as such as rooftops or pads. It is used as a wiring, junction or pull box outdoor in outdoor applications that require protection from rain, sleet, snow or dripping water. Features: The screw cover is the drip shield providing 3/4-inch overhang on each side for outdoor protection; No gasketing; Screw locations on cover are embossed; Enclosure body flange is formed outward; Mounting holes on back for direct mounting through the back to strut or mounting surface; vertical structure for mounting not required; Included mounting brackets provide a 1-inch clearance off surface for protection against pooling water; Enclosures are finished with paint over plated surfaces
