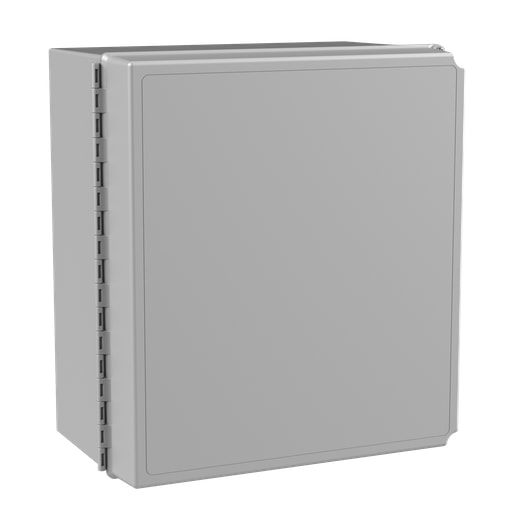

nVent Hoffman - Hoffman D181610CHSCFGP Hinge-Cover WiFi, Type 4X, 18" x 16" x 10", Fiberglass

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510149659

  • Applications - Controls and Drives; Corrosive Environments

  • Catalog Number - D181610CHSCFGP

  • Color - Light Gray

  • Depths - 10 Inch

Packaging

  • 1 ea

EAN

00783510149659

Part #

255350

Catalog #

D181610CHSCFGP

Commercial reference

D181610CHSCFGP

12-Digit UPC:

783510149659

Applications:

Controls and Drives; Corrosive Environments

Catalog Number:

D181610CHSCFGP

Color:

Light Gray

Depths:

10 Inch

ERP_productname:

HOFF D181610CHSCFGP 18X16X10 SOLID DR WOOD PANEL MFG ITEM 14965

Family Brand Name:

nVent Hoffman

Finish:

Matte

Heights:

18 Inch

Length:

20.4 Inch

Material:

Fiberglass

Sub Brand:

Hoffman

Type:

RJ45

Widths:

16 in

SoneparProductId:

SKU_US_52946223

The fiberglass WiFi Cabinet is a secure, hinged enclosure that does not impede WiFi or WLAN signals. It is ideal for housing wireless equipment in locations such as tunnels, floor vaults, marinas, outside walls or rooftops. Features: Fiberglass is easily punched, drilled, filed or sawed; Seamless foam-in-place gasket assures watertight and dusttight seal; Molded-in-place threaded brass inserts and plated steel screws are provided for mounting optional panels and terminal block kits; Removable hinged cover attached to body with Type 316 stainless steel hinge pin; Screw cover enclosures are secured with two captivated Type 316 stainless steel slotted cross-point cover screws; Available quick-release latches are corrosion-resistant polyester located in corners to provide unobstructed access to enclosure; Enclosure and door made of molded fiberglass polyester that resists chemicals and temperature change; Scratch-resistant polycarbonate windows are permanently bonded in place; Polyester mounting brackets and stainless steel attachment screws are provided with each enclosure; Hinge pin and bail are corrosion-resistant Type 316 stainless steel; Includes a 3/4-inch plywood panel for mounting equipment
