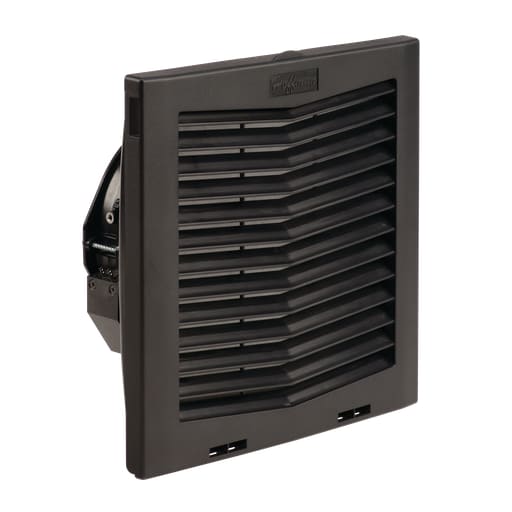

nVent Hoffman - Hoffman HF1024413 HF10 Side-Mount Filter Fan, 24V, 159 CFM, Black
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510342883
Amperage - 0.88 Amp
Applications - Controls and Drives; Power Distribution
Catalog Number - HF1024413
Color - Black
Packaging
1 ea
EAN
00783510342883
Part #
451984
Catalog #
HF1024413
Commercial reference
HF1024413
12-Digit UPC:
783510342883
Amperage:
0.88 Amp
Applications:
Controls and Drives; Power Distribution
Catalog Number:
HF1024413
Color:
Black
Depths:
5.18 Inch
ERP_productname:
HOFF HF1024413 IP54 10 IN FF 24V 9011 MFG ITEM 34288
Family Brand Name:
nVent Hoffman
Finish:
Black
Heights:
10.13 Inch
Length:
12.3 Inch
Material:
Plastic
Max Current:
0.88 A
Size:
10.13 x 10.14 x 5.18 in
Type:
Open-Loop Cooling
Voltage:
24
Widths:
10.14 in
SoneparProductId:
SKU_US_75431341
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement. Features: Click-Fit design quickly installs into enclosure wall; no tools or screws required; Opens with the flick of a finger for easy filter replacement; Enclosure side wall mounting; Reverse airflow option on HF13 models available to push/pull air through higher static pressure; Standard rope gasket provides proper seal to the enclosure; Similar cut-out sizes as other filter fan manufacturers; Terminal block connections; Optional thermostat available to save energy and extend service life; Hinged grille remains attached after opening; Size rage from 4 inch (102 mm) to 13 inch (325 mm); Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.); Service life hours from 40,000 to 100,000 hours; Operating temperature range of -4 F/-20 C to 149 F/65 C
