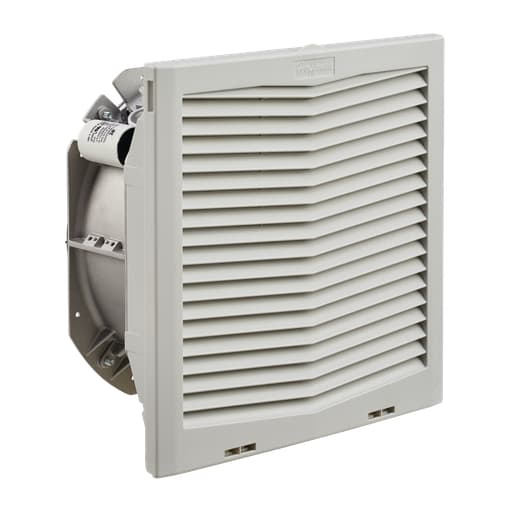

nVent Hoffman - Hoffman HF1324414 HF13 Side-Mount Filter Fan, 24V, 395 CFM, Lt Gray
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 783510342081
Amperage - 2.6 Amp
Applications - Controls and Drives, Power Distribution
Catalog Number - HF1324414
Color - Gray
Packaging
1 ea
EAN
00783510342081
Part #
468070
Catalog #
HF1324414
Commercial reference
HF1324414
12-Digit UPC:
783510342081
Amperage:
2.6 Amp
Applications:
Controls and Drives, Power Distribution
Catalog Number:
HF1324414
Color:
Gray
Depths:
6.36 Inch
ERP_productname:
HOFF HF1324414 COOLING FILTER FAN MFG ITEM 34208 MFG ITEM 34208
Family Brand Name:
nVent Hoffman
Finish:
Matte
Heights:
10.4 Inch
Length:
15 Inch
Material:
Plastic
Max Current:
2.6 A
Size:
12.8 x 12.82 x 6.36 in
Type:
Open-Loop Cooling, Non-Metallic
Voltage:
24
Widths:
12.82 in
SoneparProductId:
SKU_US_52802752
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement. Features: Click-Fit design quickly installs into enclosure wall; no tools or screws required; Opens with the flick of a finger for easy filter replacement; Enclosure side wall mounting; Reverse airflow option on HF13 models available to push/pull air through higher static pressure; Standard rope gasket provides proper seal to the enclosure; Similar cut-out sizes as other filter fan manufacturers; Terminal block connections; Optional thermostat available to save energy and extend service life; Hinged grille remains attached after opening; Size rage from 4 inch (102 mm) to 13 inch (325 mm); Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.); Service life hours from 40,000 to 100,000 hours; Operating temperature range of -4 F/-20 C to 149 F/65 C
