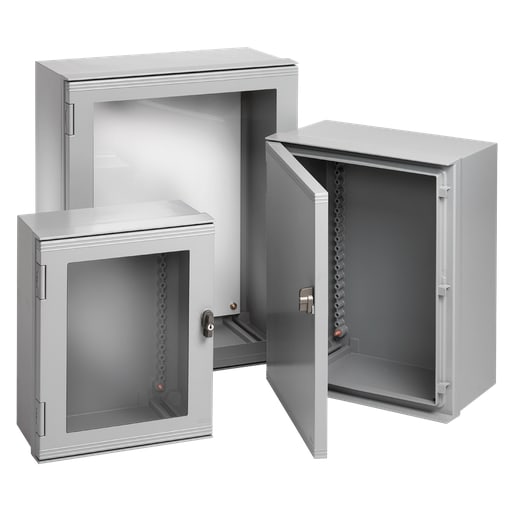

nVent Hoffman - Hoffman UU605025W ULTRX, Type 4X, 625x 513x 278mm, Fiberglass

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783510358600

  • Applications - Controls and Drives; Corrosive Environments

  • Catalog Number - UU605025W

  • Color - RAL 7035 Gray

  • Depths - 270 mm

Packaging

  • 1 ea

EAN

00783510358600

Part #

307166

Catalog #

UU605025W

Commercial reference

UU605025W

12-Digit UPC:

783510358600

Applications:

Controls and Drives; Corrosive Environments

Catalog Number:

UU605025W

Color:

RAL 7035 Gray

Depths:

270 mm

ERP_productname:

HOFF UU605025W WINDOW ENCLOSURE 600X500X250MM MFG ITEM 35860

Family Brand Name:

nVent Hoffman

Heights:

608 mm

Length:

29 Inch

Material:

Fiberglass

Mounting Type:

Wall

Size:

24.61 x 20.20 in

Sub Brand:

UltrX™

Type:

Single Window Door, Single Lock

Widths:

496 mm

SoneparProductId:

SKU_US_57907029

Providing outstanding protection against corrosion and the elements, the clean lines and molded, embossed design of Ultrx fiberglass enclosures make them the most stylish and aesthetically pleasing of their class. Features: Compression-molded fiberglass material has excellent temperature and chemical resistance qualities and exhibits outstanding physical properties, including high-impact resistance; Fiberglass is easily punched, drilled, filed or sawed; Seamless foam-in-place gasket assures water-tight and dust-tight seal; Enclosure may be rotated 180 degrees for left and right hinging; Molded-in drip shields are standard with each enclosure; Impact-resistant polycarbonate window is permanently bonded in place; Fiberglass mounting brackets and stainless steel attachment screws are provided with each enclosure; Unique hinge design allows for standard 180 degree door opening with a maximum opening of 270 degrees; Door hinges are replaceable; Type 316 stainless steel quarter-turn latch; Optional keylocking or padlocking handle available; Molded-in DIN bosses; Molded bosses on door provide additional mounting provisions; Integral mounting rails provide infinite panel adjustment front to back; Optional data pocket is high-impact thermoplastic
