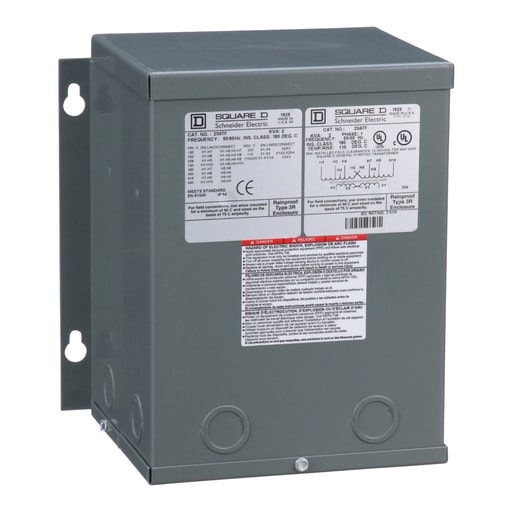

Square-D / Schneider - Square D 2S67F 2 kVa 220 x 440 VAC Primary 110/220 VAC Secondary Dry Type General Purpose Transformer

Resin Encapsulated Transformers, these general purpose transformers accommodate voltage systems world wide. Resin-filled general purpose transformers are epoxy encapsulated. The enclosure has no openings, making resin-filled transformers ideal for use indoor or outdoor where airborne particles or contaminants could be detrimental to operation. The core-and-coil assembly is embedded in an epoxy resin compound and wall mounted for maximum protection. Type 3R enclosure are designed to allow energy efficient transformers to be installed in environments requiring more protection. This Dry Sealed Transformer that is 1 phase, and has a rated power of 2 KVA. This transformer has a primary voltages of 190/200/208/220 x 380/400/416/440 V, and a secondary voltage of 110/220 V. The enclosure for this transformer has a NEMA 3R rating, and is wall mounted, and made of painted sheet steel. Dimensions for this transformer are 9.56 in (H), 8.68 in (W), 6.56 in (D). This product complys to UL & CSA standards. Prop 65: WARNING: This product can expose you to chemicals including: Phenyl glycidyl ether, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov - Compatible Products: VCELSK1; VCELSK2; VCELSK3
