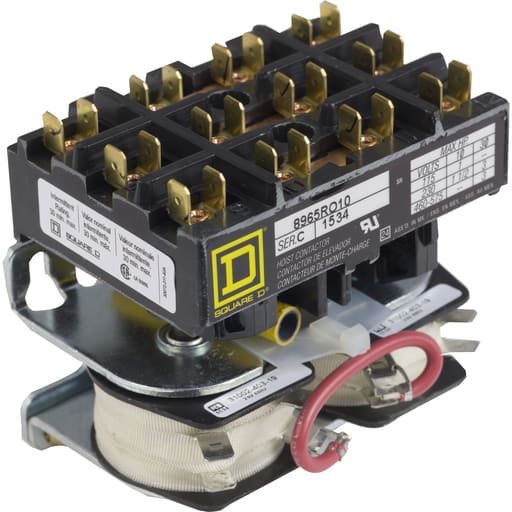

Square-D / Schneider - Square D 8965RO12V01 24 VAC Polyphase 3-Pole 1NO 1NC Open Type Reversing Definite Purpose Hoist Contactor

8965 reversing hoist contactors are designed for control of hoists, overhead doors, small elevators and commercial laundry equipment. They are rated to perform in the short periods of jogging experienced in hoist service. This 3 pole contactor has ratings of 1 HP at 115 VAC and 1.5 HP at 230 VAC single phase. Has ratings of 3 HP at 230 VAC, at 460 VAC and at 575 VAC three phase. These contactors must be mounted upright on the vertical plane. The contactors will not operate properly when mounted in any other position. The replaceable coil is available with a variety of coil voltages. This device has a 24 VAC 60 Hz coil. The power terminals have pressure wire terminals. This device is with jumper straps. This reversing contactor doesn't have an enclosure. Reversing contactor is 3.31 inches tall, 3.31 inches wide and 3.03 inches deep. Auxiliary contacts are available for these contactors. 8965RO reversing hoist contactors are UL component recognized and CSA certified.
