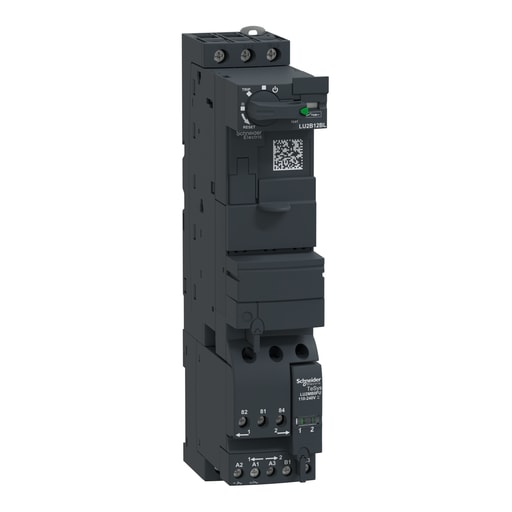

Square-D / Schneider - Square D LU2B12BL 200 to 600 VAC 12 Amp 3-Phase Screw Terminal Full Voltage Reversing Motor Starter Power Base

12-Digit UPC:

389110362933

Amperage:

12 Amp

Applications:

MOTOR

Catalog Number:

LU2B12BL

Country of Origin:

France

Depths:

126 mm

ERP_productname:

SQD LU2B12BL 12A SELF-PR.REV.STR W/TERMS- LUC*BL

Enclosure:

IP20 FRONT PANEL AND WIRED TERMINALS CONFORMING TO IEC 60947-1-IP20 OTHER FACES CONFORMING TO IEC 60947-1-IP40 FRONT PANEL OUTSIDE CONNECTION ZONE CONFORMING TO IEC 60947-1

Family Brand Name:

Schneider Electric

Heights:

224 mm

Number of Poles:

3 Pole

Size:

126 MM,224 MM,45 MM

Sub Brand:

LU2B,TESYS,TESYS U

Tc Connection:

CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.34-1.5 MMA. FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA. FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1-6 MMA. RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 2 1.5-6 MMA. FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA. FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 1 0.75-1.5 MMA. RIGID WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.34-1.5 MMA. FLEXIBLE WITH CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA. FLEXIBLE WITHOUT CABLE END-CONTROL CIRCUIT SCREW CLAMP TERMINALS 2 0.75-1.5 MMA. RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-10 MMA. RIGID WITHOUT CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 1-6 MMA. FLEXIBLE WITH CABLE END-POWER CIRCUIT SCREW CLAMP TERMINALS 1 2.5-10 MMA. FLEXIBLE WITHOUT CABLE END

Type:

REVERSING POWER BASE

Voltage:

690 Volt

Widths:

45 mm

SoneparProductId:

SKU_US_26436145
