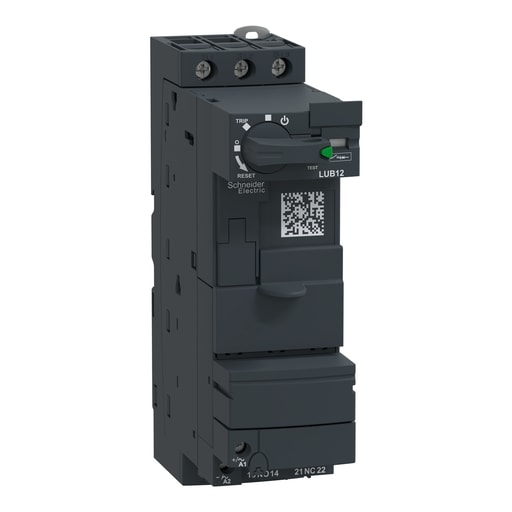

Square-D / Schneider - Square D LUB12 200 to 600 VAC 12 Amp 1/3-Phase Screw Terminal Full Voltage Non-Reversing Motor Starter Power Base

TeSys U standard power base, 3 poles (3NO), 12A/690V, to be completed with a control unit LUC to form a TeSys U starter controller, for 3-phase motor applications up to 5.5kW@400V. Base composed of power contacts, control coil, rotary handle, with a modular design for additional modules to form a "all in one" starter controller with basic or advanced protection and control functions. It is equipped with a control terminal block, and blanking shutters covering the empty cavities. It provides a high breaking capacity Icu 50kA@400V, start-stop control guaranteed for 3600 cycles/hour. Very compact (45mm width), DIN-rail mounting and screw fixing, with a padlockable rotary handle. Certified when used in conjunction with a LUC control unit (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh). Compatible Products: LUA1C20; LUA1C11; LUFN20; LUFN11; LU9BN11; LAD90; LUFN02; LUALB1; LUA8E20; GVAPA1; LU9APN22; GVAPR54; LU9APN21; GVAPB54; GVAPK12; GVAPL01; LU9APN24; GVAPR65; GVAPB65 - Cross Sell Products: LUCA05BL; LUCA12BL; LUCA1XBL; LUCA05FU; LUCA12FU; LUCA05B; LUCA12B; LUCAX6BL; LUCA1XFU; LUCA1XB; LUCAX6FU; LUCAX6B; LUCA05ES; LUCA1XES; LUCA12ES
