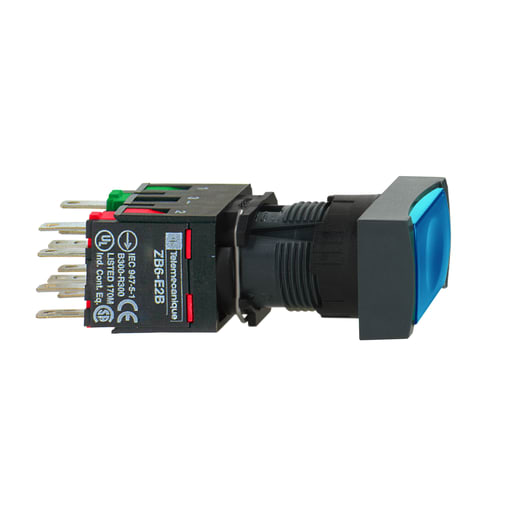

Square-D / Schneider - Square D XB6DW6B5B 16 mm 240 VAC 1.5 Amp 1NO 1NC Blue Rectangular Flush Return Illuminated Push Button
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 785901358800
Actuator - BLUE FLUSH, UNMARKED,SPRING RETURN
Amperage - 3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Catalog Number - XB6DW6B5B
Country of Origin - Mexico
Packaging
1 ea
EAN
00785901358800
Part #
445187
Catalog #
XB6DW6B5B
Commercial reference
XB6DW6B5B
12-Digit UPC:
785901358800
Actuator:
BLUE FLUSH, UNMARKED,SPRING RETURN
Amperage:
3 Amp 120 V, AC-15, B300 EN/IEC 60947-5-1-1.5 Amp 240 V, AC-15, B300 EN/IEC 60947-5-1-0.1 Amp 250 V, DC-13, R300 EN/IEC 60947-5-1-0.22 Amp 125 V, DC-13, R300 EN/IEC 60947-5-1
Catalog Number:
XB6DW6B5B
Country of Origin:
Mexico
Current:
15 mA
ERP_productname:
SQD XB6DW6B5B COMPLETE ILLUMINATED PUSH BUTTON, HARMONY XB6, BLUE RECTANG FLUSH ILLUM PUSHBUTTON ? 16 SPRING RETURN 1NO+1NC 12...24 V
Enclosure:
NEMA 13 UL 50-NEMA 4 UL 50-NEMA 4X UL 50-NEMA 13 CSA C22.2 NO 94-NEMA 4 CSA C22.2 NO 94-NEMA 4X CSA C22.2 NO 94
Family Brand Name:
Schneider Electric
Heights:
18 mm
Size:
16 MM,18 MM,24 MM,57 MM
Sub Brand:
XB6
Tc Connection:
FASTON CONNECTORS 2.8 X 0.5 MM
Type:
COMPLETE ILLUMINATED PUSH-BUTTON
Voltage:
12...24 Volt AC/DC
Widths:
24 mm
SoneparProductId:
SKU_US_26415279
