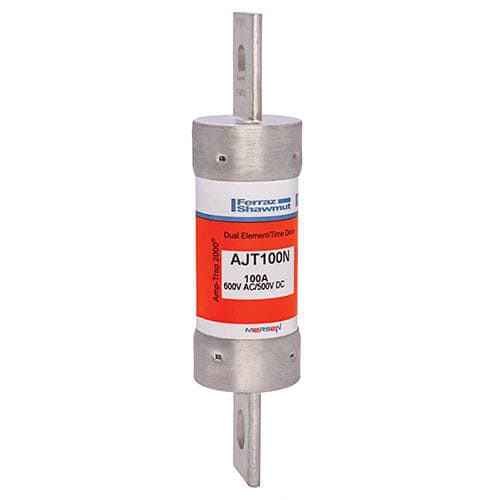

Product image for Mersen AJT100N 600VAC 100A Class J
Email

Mersen AJT100N 600VAC 100A Class J

Manufacturer: Ferraz Shawmut | Catalog # AJT100N | Echo Electric Part # 125969
$198.89/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Amp-Trap 2000® AJT fuses provide non-indication as well as a SmartSpot visual open fuse indicator. With advanced material technology the AJT fuse provides IEC Type 2 No Damage protection to main, feeder, and branch circuits, for all types of loads — yet, they require only half the mounting space needed for 600VAC Class RK fuses. AJT’s time-delay characteristics are ideal for handling typical motor and transformer inrush currents, while also providing superior current-limiting ability.

Technical Information

Amperage
100 Amp
Applications
For Damage Protection to Main, Feeder, Branch Circuits, All Types of Loads, Handling Typical Motor and Transformer Inrush Currents
Frequency
50 Hz
Fuse Class
Class J
Insulation Material
GMG
Mounting Type
Bolted,Clip
Rated Voltage AC
600 V
Rated Voltage DC
500 V
Terminal Material
Silver-Plated Copper
Terminal Type
Blade
Type
Time-Delay
Voltage
600 VAC

Packaging

Pkg Qty
5

Manufacturer Information

Brand
Ferraz Shawmut Canada, Inc.
Sub Brand
Amp-Trap® 2000

General Product Info

12-Digit UPC
782001497828
GTiN
30782001497829
Product UPC
78200149782
Weight
0.28 lb

Dimensions

Diameter
1.06 Inch
Length
4.63 Inch
Features
  • Non-indicating or solid state SmartSpot visual blown fuse indicator
  • Time-delay for motor starting and transformer inrush
  • 300kA interrupting rating - self-certified, UL witnessed tests
  • Extremely current-limiting for low peak let-thru current
  • Most current-limiting UL class fuse
  • Recommended for Arc Flash energy reduction
  • Small footprint requires less mounting space and allows smaller, more economical fuse blocks
  • Easy 2-to-1 selectivity for prevention of nuisance shutdowns
  • Unique Class J dimensions prevent replacement errors
  • High-visibility orange label gives instant brand recognition
  • Metal-embossed date and catalog number for traceability and lasting identification
  • Fiberglass body provides dimensional stability in harsh industrial settings
  • High-grade silica filler ensures fast arc quenching
  • Optional EI indicator/switch mount for AJT70 to 600 open fuse indication
Applications
  • Motor circuits
  • Mains
  • Feeders
  • Branch circuits
  • Lighting, heating & general loads
  • Transformers
  • Control panels
  • Circuit breaker back-up
  • Bus duct
  • Load centers
Approvals & Standards
  • UL listed to standard 248-8 File E2137
  • DC listed to UL standard 248
  • CSA certified to standard C22.2 No. 248.8
  • IEC 60269-2-1
  • UL listed
  • DC tested to UL standard 248
