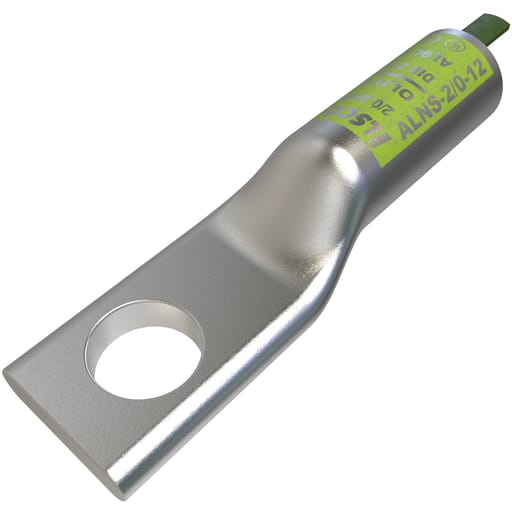

Product image for Ilsco ALNS-2/0-12 SureCrimp® Aluminum Compression Lug, Conductor Size 2/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA
Email

Ilsco ALNS-2/0-12 SureCrimp® Aluminum Compression Lug, Conductor Size 2/0, 1 Hole, 1/2in Bolt Size, Long Barrel, No Sight Window, Tin Plated, UL, CSA

Manufacturer: Ilsco | Catalog # ALNS-2/0-12 | Echo Electric Part # 292047
$18.46/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
110 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Surecrimp Aluminum Compression Lug, Dual Rated, Aluminum material, Tin plated connector,Long barrel, standard tang, 1 mounting hole(s), mounting bolt/stud size 1/2 in, UL 486A/B Listed, C22.2 No. 65-03, 180° connecting angle, Copper/Aluminum Primary Conductor 2/0 Str, Contains DE-OX®, no sight window, Square tang end, rated for 35 kV, die color code Olive, primary color Silver, die index 297,

Technical Information

Applications
Aluminum Compression Lug
Barrel Length
1.355 in
Barrel Type
Long
Color Coding
Olive
Conductor Material
Aluminum,Copper
Conductor Type
Stranded
Connection Type
Compression
Direct Burial?
No
Material
Aluminum
Mounting Hole Size
0.562 in
Number of Holes
1 Hole
Size
L:3.285;W:0.921;H:0.709 IN
Standard
CSA,E2186,UL
Strip Length
36.004 mm
Temperature Rating
90 degrees C
Type
ALNS:1 HOLE LONG BARREL
Voltage
35 Volt

Manufacturer Information

Brand
Ilsco
Sub Brand
SureCrimp®

General Product Info

12-Digit UPC
783669690408
Color
Silver
GTiN
00783669690408
Product UPC
78366969040
Weight
0.055 lb

Dimensions

Height
0.79 Inch
Inside Diameter
0.432 in
Length
3.285 Inch
Outside Diameter
0.674 in
Width
0.921 in
