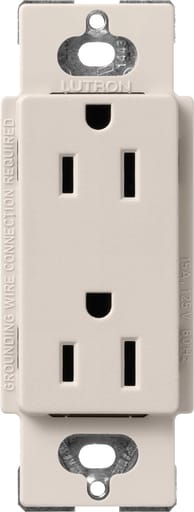

Lutron - Lutron SCR-15-TP 15 Amp 125 VAC 2-Pole 3-Wire NEMA 5-15R Taupe Duplex Dimming Receptacle
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 027557509619
Amperage - 15 Amp
Catalog Number - SCR-15-TP
Color - Taupe
Conductor Size - 14-10 AWG
Packaging
1 ea
EAN
00027557509619
Part #
205243
Catalog #
SCR-15-TP
Commercial reference
SCR-15-TP
12-Digit UPC:
027557509619
Amperage:
15 Amp
Catalog Number:
SCR-15-TP
Color:
Taupe
Conductor Size:
14-10 AWG
Country of Origin:
USA
ERP_productname:
LUT SCR-15-TP 15A/125V SCR RCPTPT
Family Brand Name:
Lutron Electronics Company
Finish:
Satin
Material:
Metal
Mounting Type:
Wall Box
NEMA:
5-15R
Number of Poles:
2 Pole
Number of Wires:
3,4,5 Wire
Size:
75 in
Sub Brand:
Designer™
Tc Connection:
Screw terminal
Type:
Receptacle
Voltage:
125 Volt
Wattage:
1875 Watt
Wire Size:
10 AWG
SoneparProductId:
SKU_US_26753067

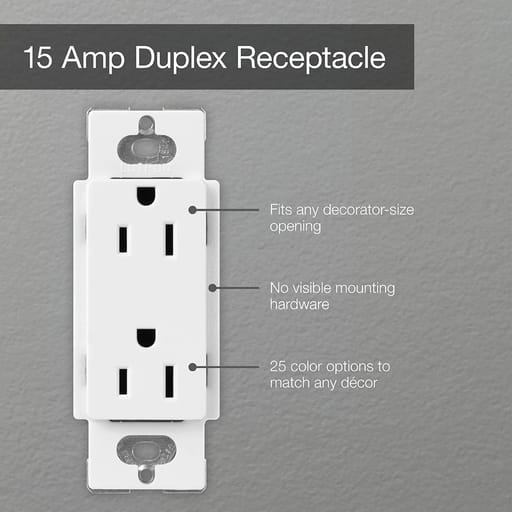

Wallplate sold separately Features: Includes (1) duplex standard receptacle; Satin finish; 15 Amp capacity; 125V only (US style wall box); Features screw terminal and push in connections for easy installation; No visible mounting hardware; Coordinates with Claro decorator-style dimmers and switches (sold separately); Flawlessly blends with trim, wall coverings and furnishings; Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately); Wallplate sold separately - Standards and Certifications: UL; CSA; NOM - Related Products: SC-1-TP; SC-3-TP; SCRS-20-TR-TP; SC-2-TP; SCR-15-GFST-TP; SCR-15-UBTR-TP; SCRS-15-TR-TP; CAR2S-15-STR-WH; SCR-20-GFST-TP; SC-1PS-TP
