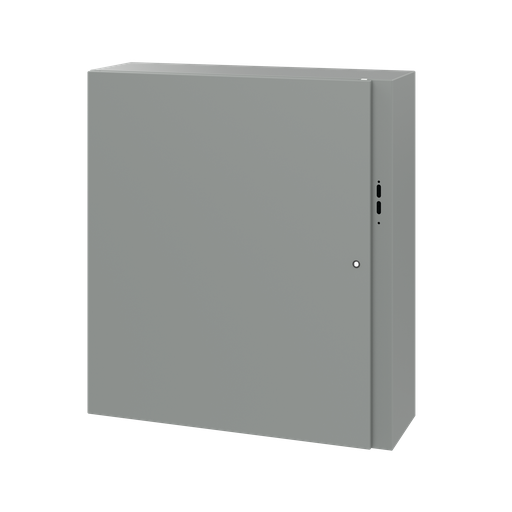

Product image for Hoffman CDSC423812 CONCEPT Disconnect Enclosure, Type 4, 42" x 38" x 12", Gray, Steel
Email

Hoffman CDSC423812 CONCEPT Disconnect Enclosure, Type 4, 42" x 38" x 12", Gray, Steel

Manufacturer: nVent Hoffman | Catalog # CDSC423812 | Echo Electric Part # 226022
$1,916.57/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet
Use mild steel Concept Disconnect Enclosures in applications that require indoor and outdoor environmental protection and maintain stylized design features. Accepts major brand disconnect switches and circuit breakers and is supplied with an nVent HOFFMAN integrated tool to open handle.

Technical Information

Applications
Arc Flash Safety, Controls and Drives, Power Distribution
Body Gauge
14
Body Thickness
1.9 mm
Color Coding
ANSI 61
Door Gauge
14
Gauge
14 ga Door and Body
Material
Steel
Mounting Type
Wall
Size
42.00x38.00x12.00 in
Standard
12,CSA File No. 42186: Type 4,CUL Listed Per CSA C22.2 No. 94,File No. E61997,Mounting Brackets Required To Maintain UL/CSA External Mounting Requirement.,NEMA/EEMAC Type 4,Type 13,Type 4,UL 508A Listed,VDE
Type
Watertight

Manufacturer Information

Brand
nVent Hoffman
Sub Brand
Concept

General Product Info

12-Digit UPC
783510783006
Color
ANSI 61 Gray
Finish
Powder Coated
GTiN
00783510783006
Product UPC
78351078300
Weight
65 lb

Dimensions

Depth
12 Inch
Height
42 Inch
Length
46 Inch
Width
38 in
Features
  • Seams continuously welded and ground smooth
  • External-formed 90-degree body flange channels away liquids
  • Bonding provision on door; grounding stud on body
  • Holes in body for mounting disconnect operating handle and operating mechanism
  • Panel mounting studs fit optional Concept panels and other accessories
  • Mounting holes in back of body for direct mounting for optional external mounting brackets
  • Removable door with hidden hinges for clean, aesthetic appearance
  • Corner-formed doors
  • Provisions on door for optional high-impact thermoplastic data pocket
  • Seamless foam-in-place gasket
  • Door alignment device on doors wider than 30 inches (762mm)
  • Concept-style latching system interlocks with the disconnect handle for added safety
  • Unique integrated door handle with tool-to-open feature and padlocking option
  • Self-grounding latch system with double seal
  • Four hinges on 60-inch-high enclosures
  • Simple easy-to-remove and install hinge pins with captivation clip
  • High-torque threadless studs and fasteners on door
  • V-shaped, fiber-wrapped gasket on the disconnect side of the body flange provides extra deflection of water
