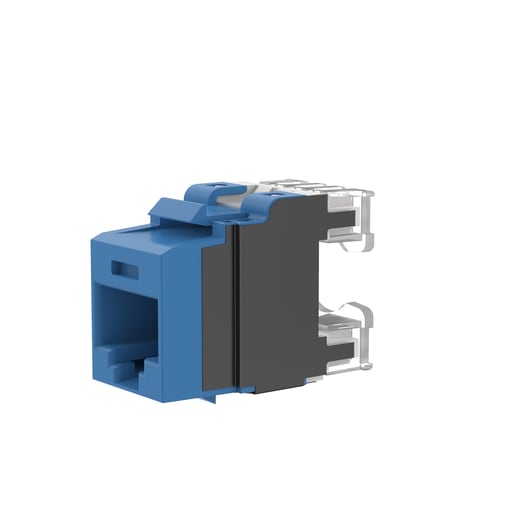

PAN NK6X88MBU-Q UTP RJ45 Cat 6A Key

Manufacturer: Panduit Corp | Catalog # NK6X88MBU-Q | Echo Electric Part # 195877
$21.94/ea
ea
Order in multiples of 25 (pack qty)
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Buy American Compliant Buy American Compliant Product Spec Sheet
The NetKey® Cat 6A UTP RJ45 Punchdown Keystone Jack Module is designed to terminate 4-pair, 22–26 AWG twisted pair cable. Each jack is 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. Jacks are individually serialized for traceability and are compatible with keystone interfaces such as NetKey® Faceplates, Modular Patch Panels, and Surface Mount Boxes. The jack is blue and includes 25 per package.

Technical Information

Applications
For use in Education, Healthcare, Finance, and Banking
Cable Size
26-22 AWG
Cable Type
Category 6A
Impedance
100 ?
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Mounting Type
Surface
Number of Positions
8
Temperature Rating
-10 to 65 degrees C
Type
RJ45, Punchdown, Unshielded

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
NetKey

General Product Info

12-Digit UPC
074983067640
Color
Blue
GTiN
00074983067640
Product UPC
07498306764

Dimensions

Depth
29.5 mm
Height
22.9 mm
Overall Length
29.5 mm
Width
16.5 mm

Certifications and Compliance

Buy American Compliant
Y
CA Prop65 Warning
N
Country of Origin
USA
Standards and Certifications
  • Standards Met: Exceeds ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class EA Channel and Component Requirements at Swept Frequencies up to 500 MHz, Complies with ANSI/TIA-1096-A, Meets IEC 60603-7, Supports IEEE 802.3af/802.3at and Proposed 802.3bt Type 3 and Type 4 PoE Applications, UL 1863 and CAN/CSA-C22.2 (UL File E129886), and RoHS Compliant
