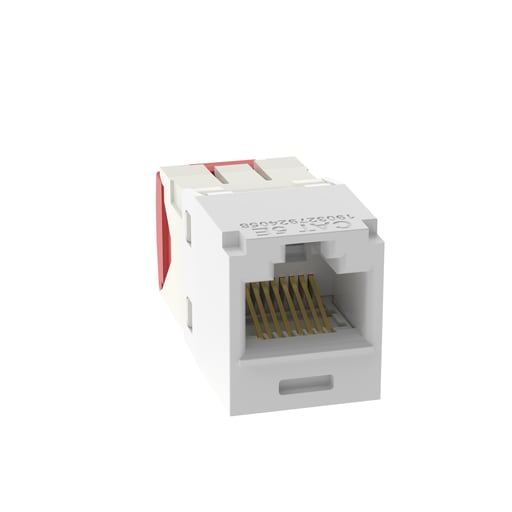

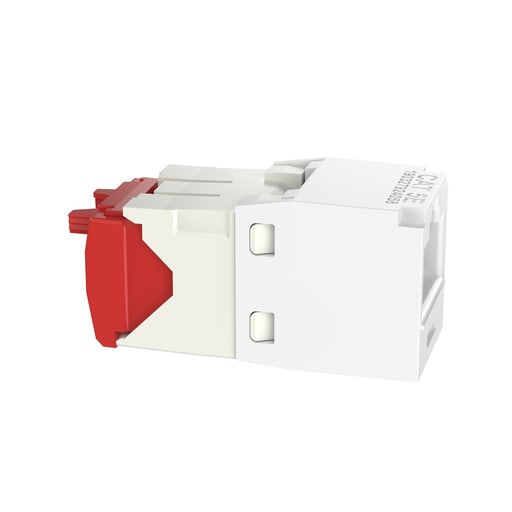

Panduit CJ5E88TGWH UTP RJ45 Cat 5e TG Jack Module, White

Manufacturer: Panduit Corp | Catalog # CJ5E88TGWH | Echo Electric Part # 140145
$20.26/ea
ea
Log in or register to view your price, purchase history, and more!
25 available

For Pick Up

at Springfield, IL Opens Monday 7:00am CT
112 available

For Delivery

Not in local stock *
Check another branch
Buy American Compliant Buy American Compliant Product Spec Sheet Product Catalog Page Installation / Instruction Manual
The Mini-Com® Cat 5e UTP RJ45 TG-Style Jack Module is designed to terminate 4-pair, 22-24 AWG twisted pair cable. Each module is 100% factory tested for continuity. Contacts are plated with 50 microinches of gold for superior performance. Jack modules are compatible with Mini-Com Modular Patch Panels and Faceplates. The jack module is White.

Technical Information

Applications
Unshielded
Cable Entry
T568A/T568B
Cable Type
Category 5E
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 5e
Type
RJ45, Unshielded

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983395385
Color
White
GTiN
00074983395385
Product UPC
07498339538
UNSPSC
43223301
Used With
Round and Solid Cables

Dimensions

Depth
1-1/2 Inch
Height
0.71 Inch
Overall Length
1.5 in
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
