Panduit Corp - Panduit IAEBH6XS Industrial Cat 6A RJ45 Shielded Bulkhead Connector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 613056108677
Applications - Shielded
Buy American - Y
Catalog Number - IAEBH6XS
Color - Black
Packaging
1 ea
EAN
00613056108677
Part #
243927
Catalog #
IAEBH6XS
Commercial reference
IAEBH6XS
12-Digit UPC:
613056108677
Applications:
Shielded
Buy American:
Y
Catalog Number:
IAEBH6XS
Color:
Black
Country of Origin:
USA
Depths:
1.67 Inch
ERP_productname:
PAND IAEBH6XS INDUSTRIAL CAT 6A RJ45 SHIELDED BULKHEAD
Family Brand Name:
Panduit Corp.
Heights:
5.37 Inch
Material:
PBT
Number of Positions:
8
Overall Length:
5.37 in
Sub Brand:
IndustrialNet™, TX6A™
Type:
RJ45, Shielded, 8-Wire, Bulkhead
Widths:
1.55 in
SoneparProductId:
SKU_US_315719306

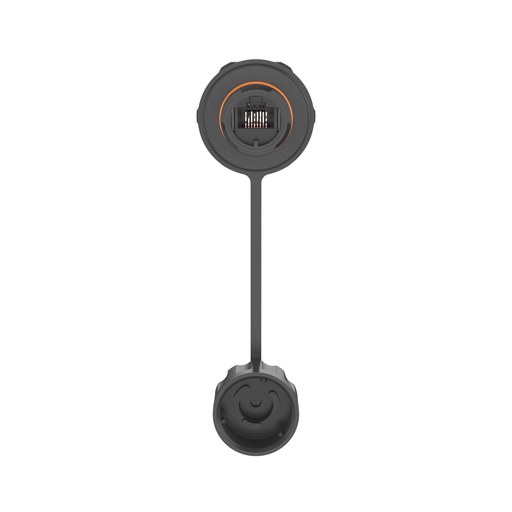

The IndustrialNet™ Cat 6A shielded bulkhead 8-position connector with protective cap is ideal in manufacturing environments. The shielded bulkhead connector features a RJ45 jack. The bulkhead provides an IP67 rated seal that provides protection from dust and temporary immersion in water. It terminates to a 4-pair, 24 AWG, 100 ohm twisted pair cable and does not require a punchdown tool. Standards and Certifications: Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568-C.2 Channel and Category 6A and ISO11801 Class EA Standards at Swept Frequencies 1 to 500 MHz, Plug Meets IEC 60603-7, Industrial Bulkhead Connection Protects and Seals Connections against Dust and Water Immersion to ANSI/IEC 60529-2004, Meets ANSI/TIA-1096-A, Bulkhead Connection Rated IP65/ P67, Bulkhead Connection Rated UL Type 12, Meets IEEE 802.3af and IEEE 802.3at for PoE Applications, and RoHS Compliant
