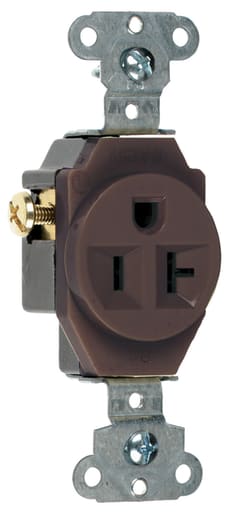

Product image for P&S 5351 RECP SGL 20A 125V S-WIRE B
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

P&S 5351 RECP SGL 20A 125V S-WIRE B

Manufacturer: Pass & Seymour / Legrand | Catalog # 5351 | Echo Electric Part # 181486
$7.07/ea
ea
Log in or register to view your price, purchase history, and more!
0

Not Available for Pickup at Springfield, IL Opens Monday 7:00am CT
11 available

For Delivery

Not in local stock *
Check another branch
Product Spec Sheet
Heavy-Duty Spec Grade Single Receptacle Side Wire 20A 125V

Technical Information

Amperage
20 Amp
Applications
Commercial
Capacity
Single
Conductor Size
14-10 AWG
Connection Type
Side Wired
Dielectric Strength
2000 V
Duty Rating
Heavy Duty
Grade
Commercial Specification
Material
Nylon
Mounting Type
Wall
NEMA
5-20R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
1.32 L x 1.08 W x 3.68 H In
Standard
NEC®
TC Connection
Back and side wire
Temperature Rating
-40 degrees C
Type
Single Receptacles
Voltage
125 Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Pass & Seymour
Sub Brand
Pass & Seymour

General Product Info

12-Digit UPC
785007535105
Color
Brown
GTiN
00785007535105
Product UPC
78500753510
UNSPSC
39121406

Dimensions

Depth
1.08 Inch
Height
3.28 Inch
Width
1.38 in

Certifications and Compliance

Certifications
CULUS
Country of Origin
Mexico
Features
  • Auto-ground clip assures positive ground.
  • Factory-broken split-circuit tab allows for 50% plug load control to be achieved in one duplex receptacle.
  • Heavy-duty, corrosion-resistant zinc-plated steel strap for added strength.
  • Backed-out tr-drive steel terminal screws. Internal screw-pressure-plate side wire capability.
  • One-piece brass triple-wire power contacts for lasting retention.
  • For covering patents, see www.legrand.us/patents.
  • Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +60°C, minimum -40°C without impact
Certifications
  • cULus Listed
