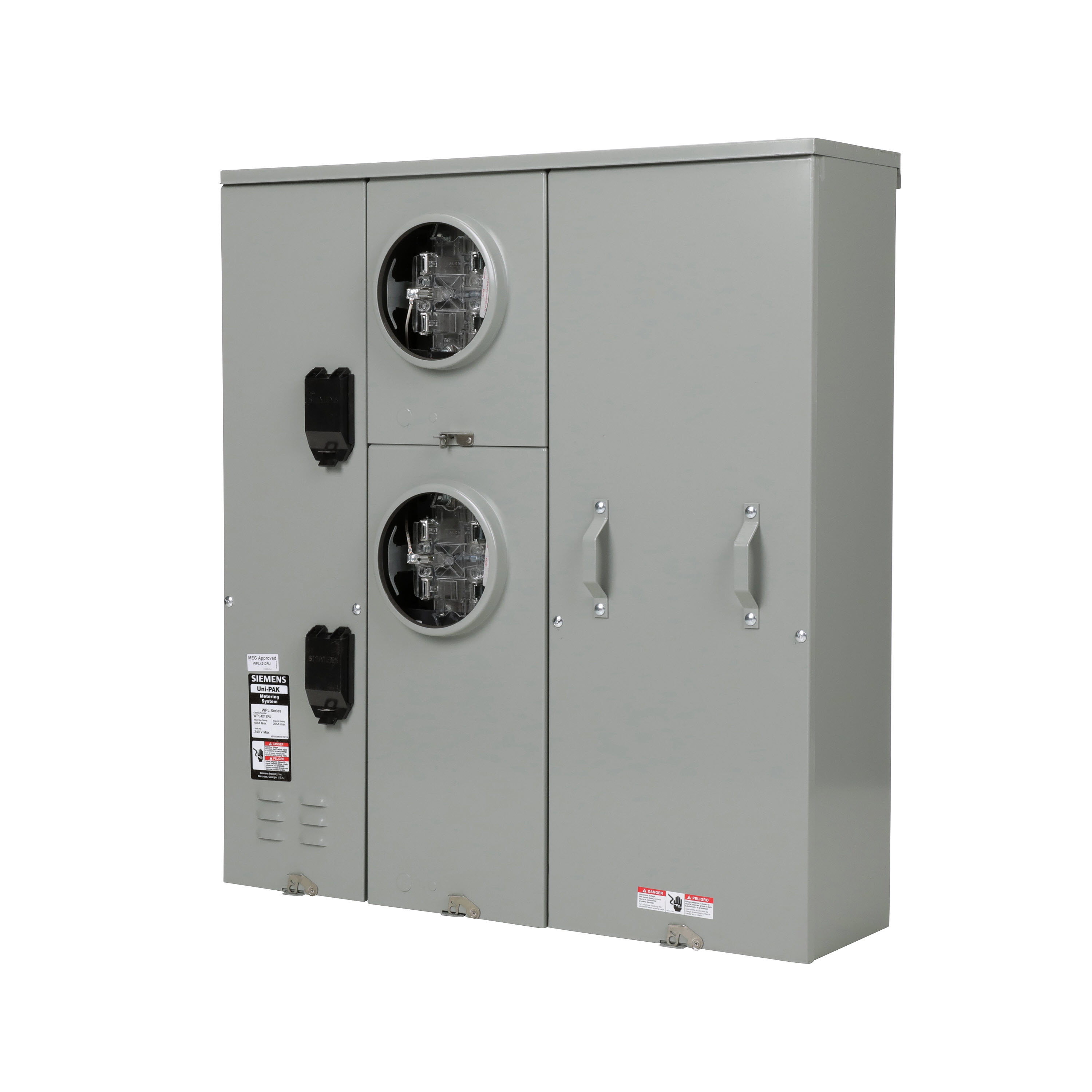

Siemens - Siemens WPL4212RJ 120/240 VAC 400 Amp 1-Phase 3-Wire Overhead/Underground Feed Direction Meter Center
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 040892874037
Amperage - 400 Amp
Applications - SERVICEENTRANCEEQUIPMENT
Catalog Number - WPL4212RJ
ERP_productname - SIEM WPL4212RJ PAKMTR 400A 2G 1PH 225A 5J RLS LVR
Packaging
1 ea
EAN
00040892874037
Part #
133387
Catalog #
WPL4212RJ
Commercial reference
WPL4212RJ
12-Digit UPC:
040892874037
Amperage:
400 Amp
Applications:
SERVICEENTRANCEEQUIPMENT
Catalog Number:
WPL4212RJ
ERP_productname:
SIEM WPL4212RJ PAKMTR 400A 2G 1PH 225A 5J RLS LVR
Enclosure:
RINGLESS
Family Brand Name:
Siemens
Number of Phases:
1 Phase
Size:
2
Sub Brand:
Uni-PAK
Type:
METERSTACK
Voltage:
120/240 Volt
SoneparProductId:
SKU_US_25632278
Siemens Low Voltage s Multi-Family Metering Line of PAK Metering Lever Bypass as part of the PAK Metering Lever Bypass Group. Type UNI-PAK Features LEVER BYPASS Appn GARDEN - STYLE Std UL-50,67,414 V. Rating 120/240V A. Rating 400A Phase 1PH Size 10.50 x 36.38 x 37.500 No. Of Cutouts 11 Cutout Size 4X(2-1/2,2,1-1/2 ),2X4 , 1X1/2 , 1 x (1,3/4 ,1/2 ), 2 x (4,3-1/2,3,2-1/2,2 ), 1 x (1-1/2,1-1/4,1,3/4,1/2 ) Cable Entry TOP/BOTTOM Terminal 1,2, OR 3 CONDUCTOR OPTIONS. Insulated.Appn . Wall Mounted. Enclosure RINGLESS
