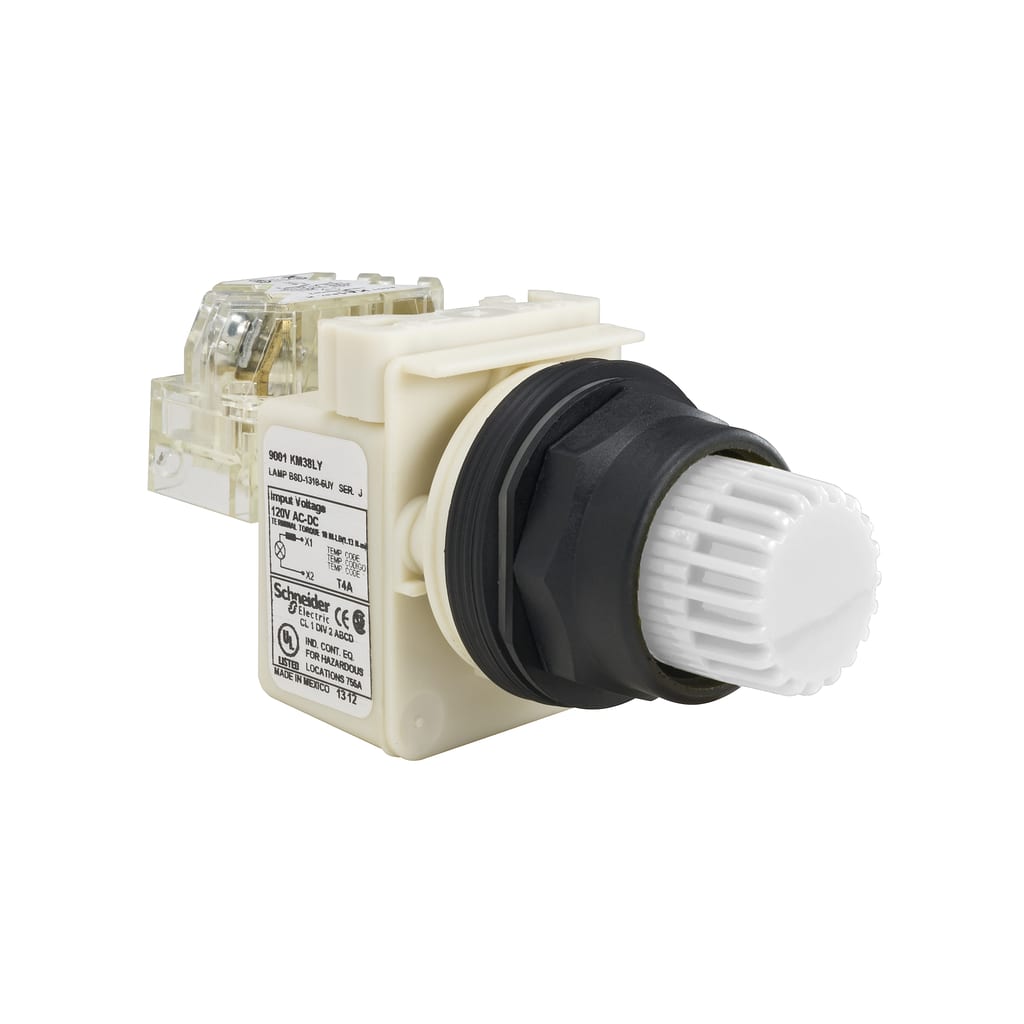

Product image for SQD 9001SK2L35LWW PUSHBUTTON OPERAT
Image thumbnail 0
Image thumbnail 1
Email

SQD 9001SK2L35LWW PUSHBUTTON OPERAT

Manufacturer: Square-D / Schneider | Catalog # 9001SK2L35LWW | Echo Electric Part # 234843
$153.00/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet
This Harmony 9001SK, modular illuminated projecting white push button is supplied with integral LED. It has a double insulated plastic bezel and is supplied with 24V AC/DC and uses screw-clamp terminals. It is easily installed into a standard 30mm diameter panel cut-outs and connected to control circuits with classic screw-clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Impact and corrosion resistant plastic body ensures product continues to operate even after severe accidents.

Technical Information

Actuator
SPRING RETURN,WHITE PROJECTING, UNMARKED
Bezel Material
Plastic
Contact Configuration
WITHOUT CONTACT BLOCK
Contact Material
Silver Alloy
Enclosure
NEMA 1-NEMA 12-NEMA 13-NEMA 2-NEMA 3-NEMA 3R-NEMA 4-NEMA 4X
Indicator
BA 9S
Net Weight
0.181 kg
Operating Temperature
-25-70 Adegrees C
Size
30 MM
Standard
CSA C22.2 No 14,EN/IEC 60947-1,EN/IEC 60947-5-1,EN/IEC 60947-5-4,JIS C 4520,JIS C 852,UL 508
Storage Temperature
-40-70 degrees C
Type
ILLUMINATED PUSH-BUTTON
Voltage
24...28 Volt AC/DC

Manufacturer Information

Brand
Square D
Sub Brand
9001SK

General Product Info

Color
White
Weight
0.40 lb

Dimensions

Warranty Length
18 mth

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
NEMA,UL 508
Country of Origin
Mexico
