SQD EZMH315225 Branch unit, EZ Mete

Manufacturer: Square-D / Schneider | Catalog # EZMH315225 | Echo Electric Part # 129726
$2,607.56/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2

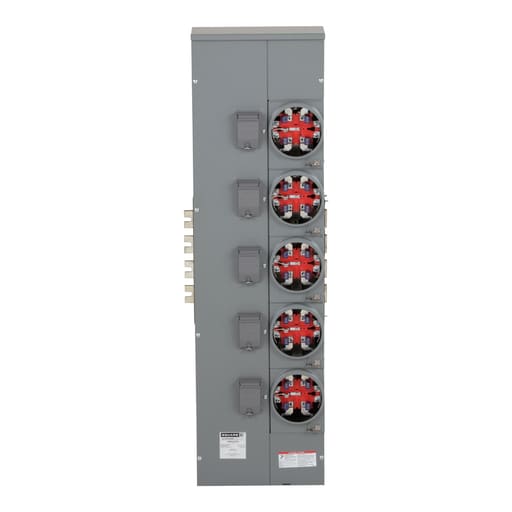

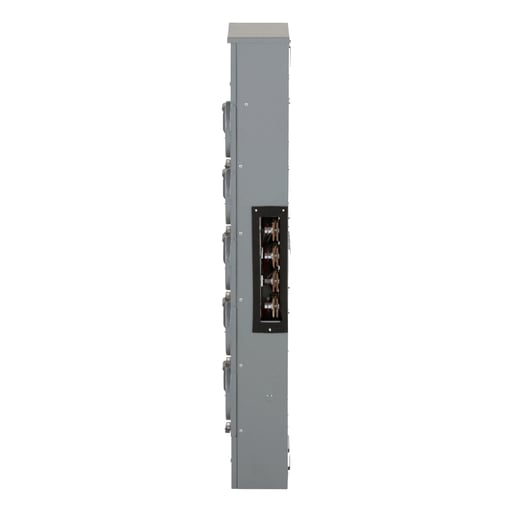

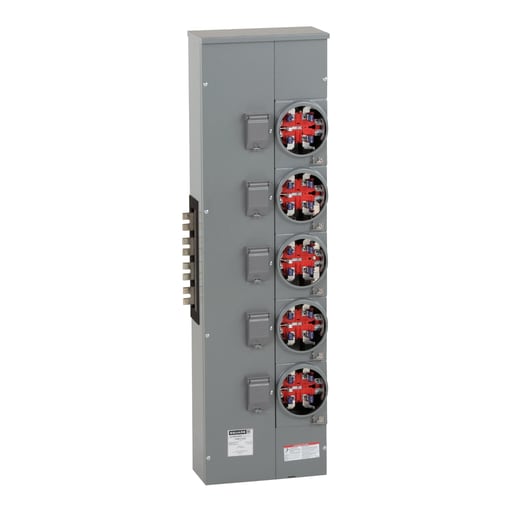

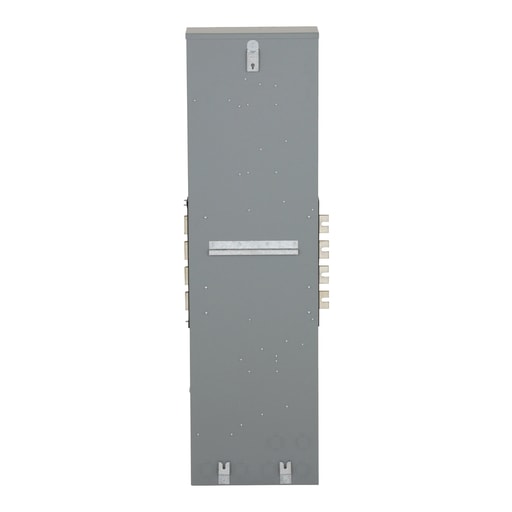

Square D™ EZ Meter-Pak™ devices are the industry choice, providing better solutions to meet more multi-unit construction needs than any other line in the industry. EZM branch units are supplied with meter sockets and provisions for mounting tenant circuit breakers. The various EZ Meter Pak devices can have main ratings from 225 to 2000 A maximum depending on the version. Residential and commercial branches are available in ring or ringless type. This branch unit is ringless and rated 225A. It has 5 five jaw sockets for use. The system voltage is 208Y/120 VAC and has a horn bypass. It includes a 1200 A aluminium/copper busbar. It is compliant with UL standards and the steel enclosure has a rating of NEMA 3R.

Technical Information

Amperage
225 Amp
Bus Rating
1200 A
Current
225 Amp
Enclosure
3R
Enclosure Material
Steel
Enclosure Rating
3R
Line Rated Current
225 A
Material
Aluminium/copper: Busbar
Mounting Type
Surface
NEMA Size
3R
Number of Jaws
5 Without Jaw Release
Number of Phases
1,3 Phase
Size
61.00 in
Type
Ringless;Meter Center Branch Unit
Voltage
120/208 VAC

Manufacturer Information

Brand
Square D
Sub Brand
METER-PAK

General Product Info

12-Digit UPC
785901299653
GTiN
00785901299653
Product UPC
78590129965

Dimensions

Depth
8.09 Inch
Height
61 Inch
Warranty Length
18 mth
Width
17.38 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
UL
Country of Origin
Mexico
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
