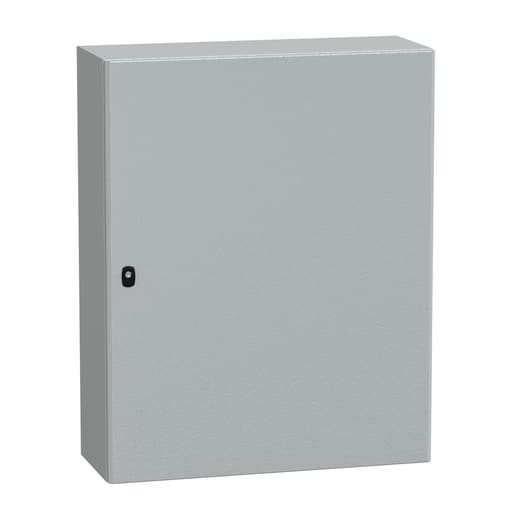

Product image for SQD NSYS3D10830P Wall mounted steel
Email

SQD NSYS3D10830P Wall mounted steel

Manufacturer: Square-D / Schneider | Catalog # NSYS3D10830P | Echo Electric Part # 192560
$411.10/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3
Spacial S3D wall mounted steel enclosure with plain door. 1000 x 800 x 300 mm. Single piece body, mounting plate included. 3-point closure system with handle and 3 mm double bar lock insert. Steel made, epoxy-polyester powder finish. Protection IP 66, IK10, Grey RAL 7035.

Technical Information

Applications
GUTTER-SHAPED FRONT RAIL DOUBLE SHEET THICKNESS-SINGLE PIECE BODY,MULTI-PURPOSE
Door Type
Solid
Lock Type
3 mm
Material
Steel
Net Weight
52 kg
Number of Doors
Front Face 1
Size
1000 MM,300 MM,800 MM
Standard
IEC 62208
Surface Finish
Enclosure Epoxy-polyester Powder
Type
COMPACT ENCLOSURE,PLAIN,WALL-MOUNTING

Manufacturer Information

Brand
Schneider Electric
Sub Brand
SPACIAL

General Product Info

12-Digit UPC
064801601101
Color
Enclosure Gray RAL 7035)
Construction
1 BODY-2 CABLE GLAND PLATE-1 MOUNTING PLATE-1 DOOR WITH LOCK
GTiN
03606480160110
Product UPC
06480160110
Weight
52 kg

Dimensions

Enclosure Depth
300 mm
Enclosure Height
1000 mm
Enclosure Wdth
800 mm
Height
1000 mm
Warranty Length
18 mth
Width
800 mm

Certifications and Compliance

Certifications
BV,CUL,DNV,GL,LR,UL
Country of Origin
France
