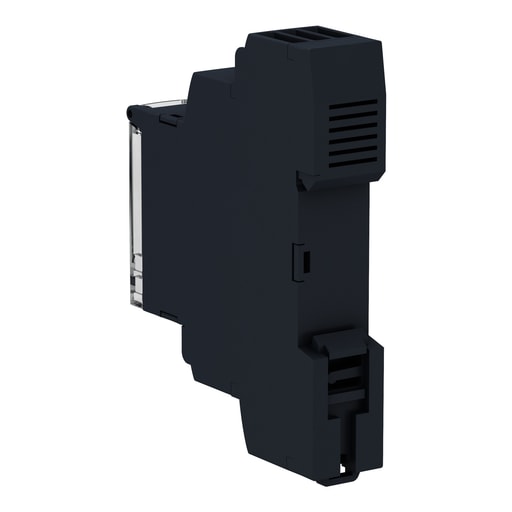

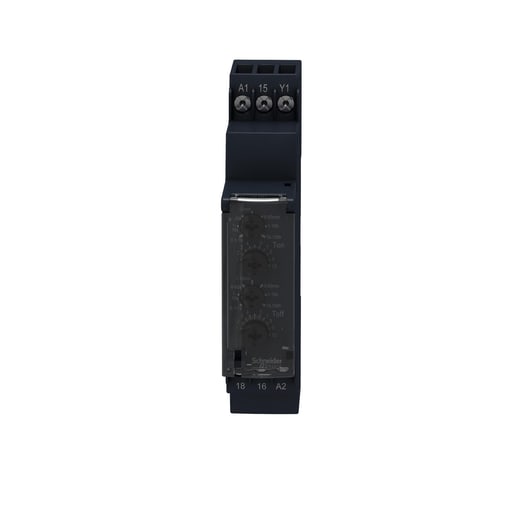

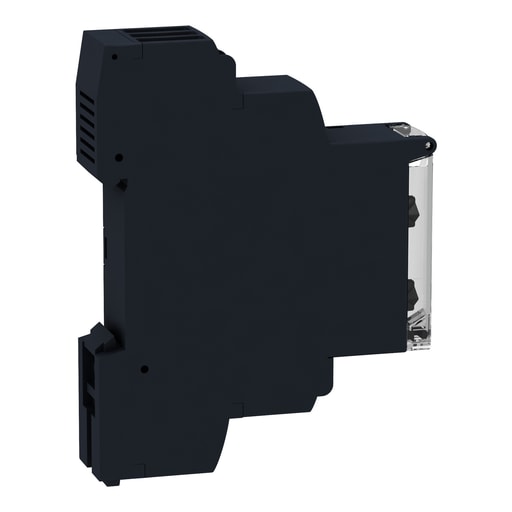

Product image for SQD RE17LLBM single function relay,
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

SQD RE17LLBM single function relay,

Manufacturer: Square-D / Schneider | Catalog # RE17LLBM | Echo Electric Part # 120016
$126.50/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1
This Harmony RE17L timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 0.7A, is 17.5mm wide and can be supplied with 24V to 240V AC. It also has a solid state output. It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers L, Li asymmetrical flashing functions. Solid state output, with no moving parts, longer product life and reduced sensitivity to vibrations. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Technical Information

Contact Rating
0.7 A
Control Type
Selector switch front panel
Dielectric Strength
1 mA
Input Voltage
7 V
Line Rated Current
0.7 A
Max Output Current
20 A
Net Weight
0.068 kg
Operating Cycles
10
Operating Temperature
-20-60 Adegrees C
Size
0.69 in
Standard
2004/108/EC,2006/95/EC,IEC 61000-6-1,IEC 61000-6-2,IEC 61000-6-3,IEC 61000-6-4,IEC 61812-1
Storage Temperature
-30-60 degrees C
TC Connection
SCREW TERMINALS, 1 X 0.5...1 X 3.3 MMA AWG 20...AWG 12) SOLID WITHOUT CABLE END-SCREW TERMINALS, 2 X 0.5...2 X 2.5 MMA AWG 20...AWG 14) SOLID WITHOUT CABLE END-SCREW TERMINALS, 1 X 0.2...1 X 2.5 MMA AWG 24...AWG 14) FLEXIBLE WITH CABLE END-SCREW TERMINALS, 2 X 0.2...2 X 1.5 MMA AWG 24...AWG 16) FLEXIBLE WITH CABLE END
Type
Solid state;Dual function relay

Manufacturer Information

Brand
Schneider Electric

General Product Info

12-Digit UPC
606480552659
GTiN
03606480552656
Housing Material
Self-extinguishing
Product UPC
78590199059
Weight
0.068 kg

Dimensions

Depth
72 mm
Height
90 mm
Width
17.5 mm
