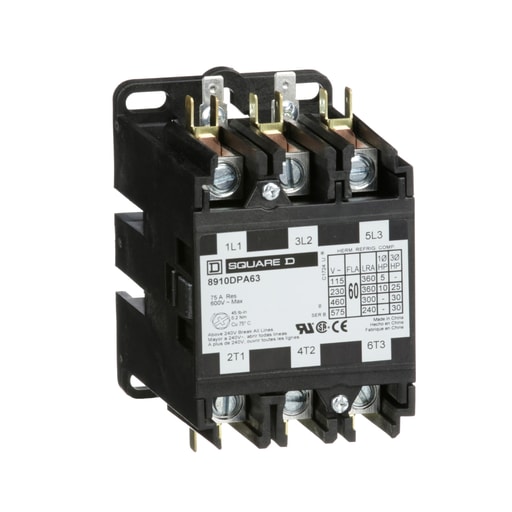

Square-D / Schneider - Square D 8910DPA63V09 208 to 240 VAC 60 Amp 3-Pole 3NO NEMA 1 Non-Reversing Definite Purpose Contactor

Essential specifications

12-Digit UPC - 785901080794
Amperage - 60 Amp
Applications - IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.
Catalog Number - 8910DPA63V09
Coil Voltage - 208...240 V AC 60 HZ-220 V AC 50 HZ,600 V AC

Packaging

1 ea

EAN

00785901080794

Part #

166295

Catalog #

8910DPA63V09

Commercial reference

8910DPA63V09

12-Digit UPC:

785901080794

Amperage:

60 Amp

Applications:

IDEAL FOR HEATING, AIR CONDITIONING, REFRIGERATION, DATA PROCESSING AND FOOD SERVICE EQUIPMENT.

Catalog Number:

8910DPA63V09

Coil Voltage:

208...240 V AC 60 HZ-220 V AC 50 HZ,600 V AC

Country of Origin:

China

ERP_productname:

SQD 8910DPA63V09 208/240V CONTACTO

Family Brand Name:

Square D

Number of Phases:

3 Phase

Number of Poles:

3 Pole

Size:

Sub Brand:

DPA

Tc Connection:

Box lugs;Quick connect terminals

Type:

Definite Purpose Contactor

Voltage:

600 Volt

SoneparProductId:

SKU_US_69982621

8910DP definite purpose magnetic contactors are designed for heating, air conditioning and refrigeration applications. This line of definite purpose contactors has current ratings up to 120 amperes resistive and 50 HP at 600 VAC. This three pole definite purpose contactor has a full load rating of 60 ampere and a resistive rating of 75 amperes. It also has a 5 HP at 115 VAC single phase, 10 HP at 230 VAC single phase and 25 HP at 230 VAC three phase, 30 HP at 460 VAC three phase and 30 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 208/240 VAC 60 Hz coil. The contactor has straight through wiring. Contactor is 4.06 inches by 2.56 inches and 3.67 tall. These contactors are UL component recognized and CSA certified. Compatible Products: 9999D10; 9999D01; 9999D11; 9999D20; 9999DMB1; 9991DPG3 - Spare Part Products: 9998DA2V09
