Square D 9080LBA1652021 760 Amp 600 Volt 4 AWG to 500 MCM Primary Phenolic 1-Pole Standard Power Distribution Block

Manufacturer: Square-D / Schneider | Catalog # 9080LBA1652021 | Echo Electric Part # 262651
$254.67/ea
ea
Log in or register to view your price, purchase history, and more!
Usually ships within 8 to 12 days
CA Prop65 Warning CA Prop65 Warning Product Spec Sheet Product Catalog Page CAD Drawing #1 CAD Drawing #2 CAD Drawing #3

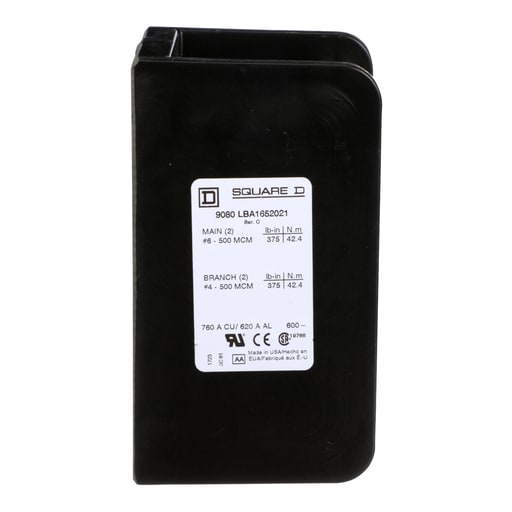

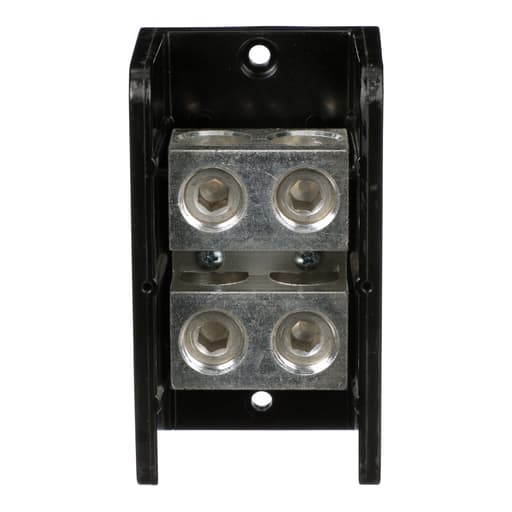

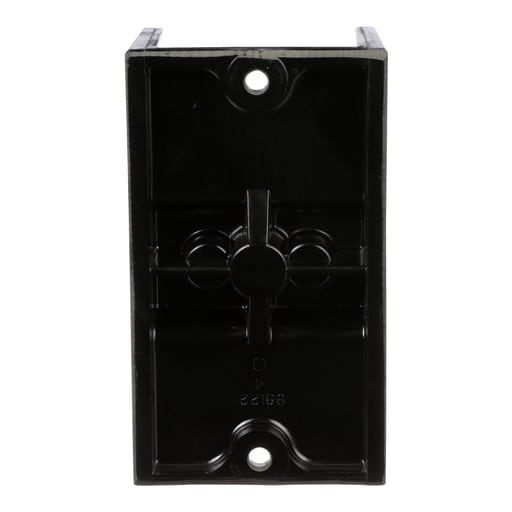

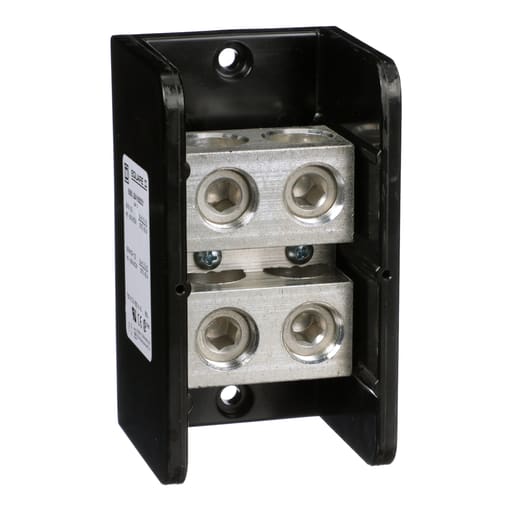

Linergy power distribution blocks are for terminating wires and are designed to NEMA standards. This one pole block has two lug openings on the line (main) side and two lug openings on the load (branch) side. The line side lug is rated to accept one #6 to 500 kcmil copper or aluminum wire. The load side lugs are rated to accept one #6 to 500 kcmil copper or aluminum wire. The lugs are made of aluminum. The lugs are rated for 760 amperes with copper wire and 620 amperes with aluminum wire. The lugs are rated to 600 volts. The housing is made of general purpose phenolic. These Linergy power distribution blocks are UL component recognized and CSA certified.

Technical Information

Amperage
760-760 Amp COPPER-620-620 Amp ALUMINIUM
Applications
9080LB,9080LB51
Conductor Size
4 AWG-500 kcmil
Current
620 Amp
Line Rated Current
620-620 A
Material
Phenolic: Block
Mounting Type
Surface Mount
Number of Poles
1 Pole
Number of Terminations
2
Operating Temperature
-40-302 degrees F
Size
3.13 in
Strip Length
1.38 in
TC Connection
LINE LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM-LOAD LUG 375 LBF.IN AWG 4...500 KCMIL COPPER OR ALUMINIUM,TIN PLATED ALUMINIUM LUGS
Type
9080LB51;Power Distribution Block
Voltage
600 Volt
Wire Size
Line 2, AWG 4...500 kcmil, copper or aluminium;Load 2, AWG 4...500 kcmil, copper or aluminium

Manufacturer Information

Brand
Square D

General Product Info

12-Digit UPC
785901097396
GTiN
00785901097396
Product UPC
78590109739

Dimensions

Depth
3.13 Inch
Height
5-1/2 Inch
Warranty Length
18 mth
Width
3.17 in

Certifications and Compliance

CA Prop65 Warning
WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Certifications
CE,CSA File 70361 Class 6228 01,UL Recognized E60616 CCN XCFR2
Country of Origin
USA
Prop 65
  • WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
